Air High Temperature Probe 1300 Degrees

The high quality Air High Temperature Probe 1300 Degrees is a specialized instrument designed to measure the temperature of air or gases in high-temperature environments.

Model:PTM600-FG

Send Inquiry

Rating: 5.0

(Rating Count: 1)

PTM600-FG Air High Temperature Probe 1300 Degrees

PTM600-FG flue gas detector can optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.

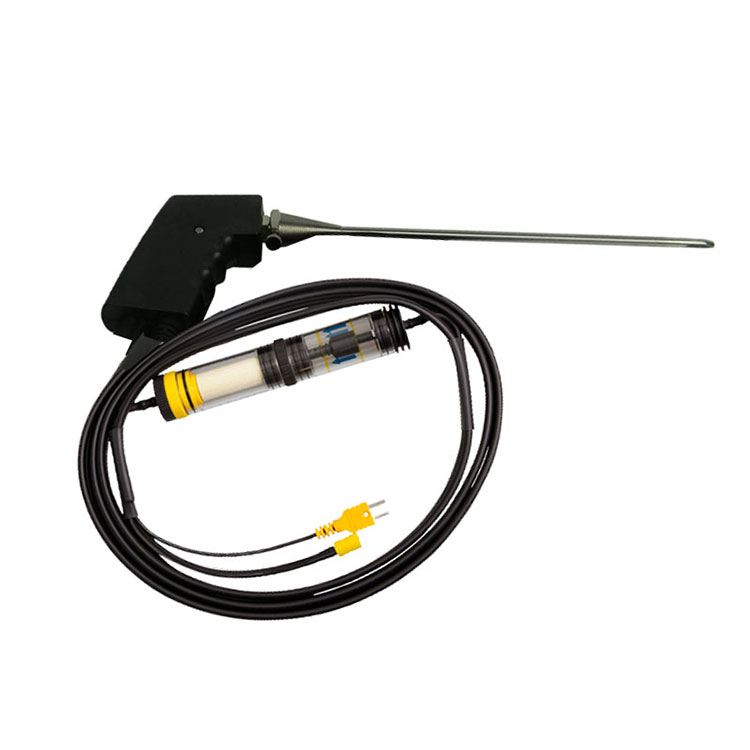

1000mm & 1300 ℃ probe, 2000mm cooling hose, with water & dust filter, with pressure & temperature function.

Gases to be detected	Range	Accurancy	Resolution	Response time T90
Combustible gas ( EX )	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Methane ( CH4 )	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10 seconds
Oxygen gas ( O2 )	0-30%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Hydrogen sulfide ( H2S )	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitric oxide ( NO )	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Ethylene oxide ( ETO )	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Phosgene ( COCL2 )	0-1ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Silane ( SiH4 )	0-50ppm	＜±2%(F.S)	0.01ppm	≤30 seconds

Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
