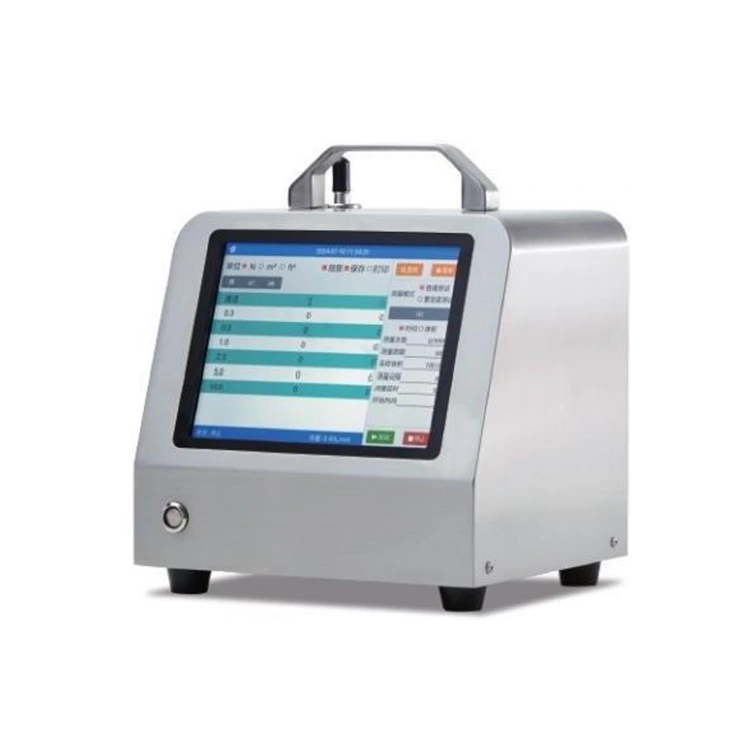

B110-Pro Airborne Particle Counter

Model:B110-Pro

B110-Pro The high-flow series dust particle counter is designed with cutting-edge technology, meets the requirements of China's CGMP regulations, has a touch-screen display, is easy to operate, and can quickly reflect the instrument status. The 316 stainless steel shell can withstand various disinfectants. All collected data meets the requirements of PDA21CFR part 11 regulations.

Model:B110-Pro

Send Inquiry

Features

316L stainless steel shell, resistant to commonly used disinfectants in clean rooms

8-inch touch screen, simple operation

The name of a single room can be in Chinese or English.

Enter the area of the clean room, and it can automatically calculate the number of monitoring points required for the clean room.

It can store at least 1 mi ll ion samp l ing data.

Multi-level permission management, with audit trail function, FDA21CFRPart11 electronic record electronic signature function

USB output (PDF reports and data sources can be exported directly from USB flash drive)

Model	B110-Pro
Flow	28.3L/min
PM Ranges	0.1、0.15、0.2、0.25、0.5、1.0、3.0、5.0( μm)
Partidesizeresolution	<15%@0.5 μm(Conforms to ISO21501-4)
MaximumConcentration¹	1000,000Individual/cubic(35,000Grain/L)
Clean-down Capability	≤10min
Air-out	The design of the exhaust hole will not disrupt the surrounding laminar flow, and the filter is built into the outlet of the sampler. (>99.97%@0.2μm)
SamplingMode	Time sampling and volume sampling modes can be set, and the sampling time and time interval can be set.
Room preset functions	Countless room location numbers, points, sampling times, sampling periods, intervals, delays, alarms, etc. can be preset Set saved parameters without the need for repeated settings
sampling Period	Choose between 1s-999999s
Laser Classification	Laser diode (semiconductor laser source) with a lifespan of over 35000 hours
Communication	MODBUS TCP
Data Storage	Accepting USB data download, the data cannot be edited or modified, and meets the FDA21CFRParl1 standard to store at least 1 million sets of sample data.
Display	8-inch touch screen display, displaying particle change trend chart and bar chart
Language	Default Simplified Chinese version, optional English version (can be extended to other languages)
Pemissions	Has multi-level permission control, with permission levels divided into system administrators, operators, and process personnel
Standards	You can choose Chinese standards such as the new version of GMP, ISO14644-1, etc
Battery	Can work continuously for 8 hours
Power supply	110-240V,50-60Hz, Built in rechargeable lithium-ion battery
Power	≤50W
Printer	Built in thermal printer
Housing Material	316L stainless steel, resistant to disinfectants
Operating Environment	Temperature 5 ℃~35 ℃, humidity 0~98% (non condensing), atmospheric pressure : 86-106kPa
Weight	6.5kg
Dimensions	230mm (W) x 225mm (H) x 200mm (D) (excluding accessories such as air nozzles and handles)
