Dew Point Meter

Specifically engineered for industrial dew point detection, the Dew Point Meter integrates highly stable sensing technology with an intelligent operating system to clearly display and reliably record critical humidity parameters over extended periods.

Supporting multiple power supply modes for diverse scenarios, this device adapts to complex industrial environments. Its user-friendly operation and dependable performance provide precise, continuous data support for humidity control throughout production processes.

FEATURES:

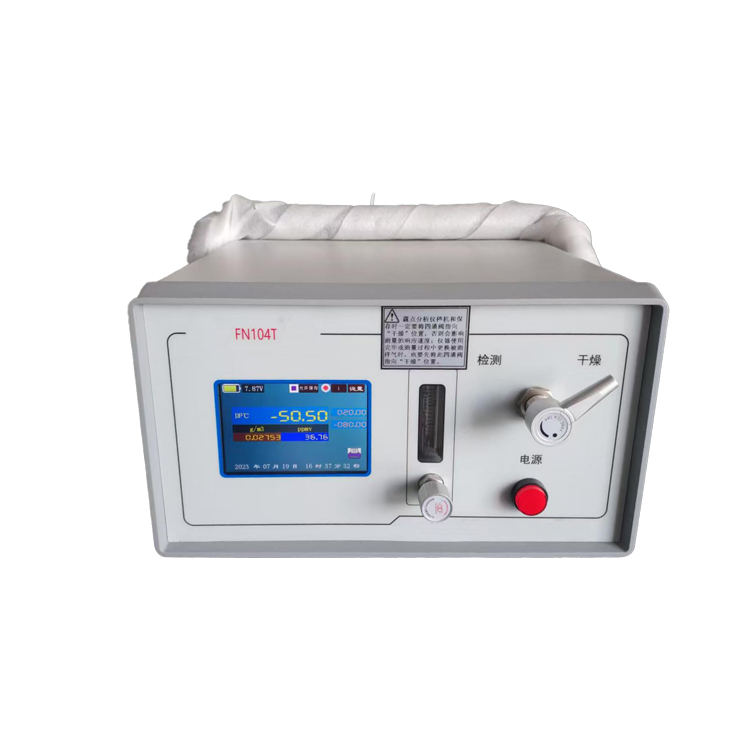

The FN104T dew point meter utilizes an imported thin-film capacitive humidity sensor, combined with single-chip microcomputer control technology, offering high measurement accuracy and ease of use.

The instrument features a 320×480-dot TFT display that simultaneously displays dew point temperature, volume ratio, and absolute humidity. When unattended, it can periodically record dew point values and store at least three months of continuous data. The touchscreen menu is user-friendly and user-friendly, with a fully Chinese menu. It operates with a 220V AC charger, AC power supply, and DC battery power, providing approximately 8–12 hours of continuous operation on a full charge.

SPECIFICATIONS

Measuring range: -80°C to +20°C

Uncertainty: ≤±2°C above -60°C, ≤±3°C below -60°C

Resolution: 0.1°C

Stability: Zero drift ≤±1.5°C/7 days

                    Span drift ≤±1.5°C/7 days

Warm-up time: ≤5 minutes

Repeatability: ≤±1°C

Sample gas flow rate: 1.0 to 2.0 L/min

Sample gas pressure: Inlet pressure ≤0.25 MPa

Operating environment: Temperature: -5°C to +45°C

                                                      Humidity: ≤90% RH

Power supply: AC 220V or DC 7.2V battery

Charging power supply: ~220V ±10%, 50Hz

Weight: Approximately 3.2 kg
