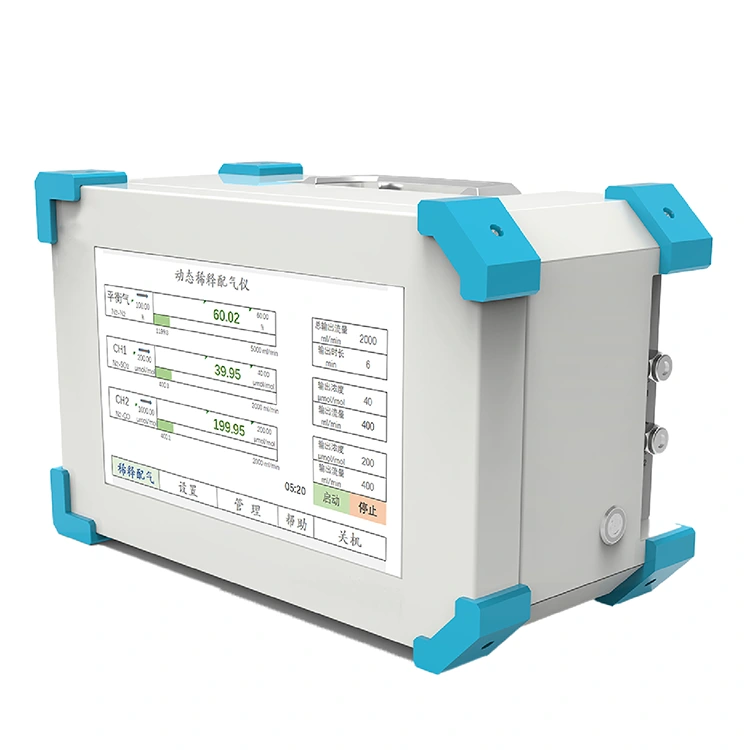

Dynamic Dilution Calibrator

This Dynamic Dilution Calibrator is used for testing and calibration of gas analysis instruments, reactor gas supply, sample gas debugging, gas mixture synthesis, etc. It can pre-set the output gas concentration and duration, and automatically complete the gas distribution experiment project.

Features

1.Ultra-fast gas flow control (stabilization time < 100 ms );

2.Set gas output concentration and output flow, and automatically calculate and adjust the flow of input sample gas and balance gas;

3.The gas output status can be preset, and the output status can be adjusted during operation;

4.10 - inch high-resolution color touch screen;

5.The body flow path adopts silanization inert treatment, which is suitable for dilution and distribution of easily adsorbed and reactive compounds;

6.Wide dynamic range (normal dilution ratio 1000:1) ;

7.Output pressure adjustment range (5~ 15 ) PSI (optional);

8.Optional gas injector for sample gas dilution

9.The sample number (at least 16 digits: including letters + numbers) can be entered and recorded, and the sample number, dilution ratio, date and time and other information can be printed through the micro printer.

10.Built-in lithium battery, battery life more than 6 hours.

Widely used in environmental monitoring, gas analyzer calibration, laboratory research, process gas control, and standard gas preparation. Suitable for various gas chromatography-based testing methods and gas blending tasks.
