Filter Integrity Tester Sterile Filtration Validation

This Filter Integrity Tester Sterile Filtration Validation meets the requirements of the Pharmacopoeia issued in 2020,implementing instrument authority management, audit tracking, and electronic signature. It can also be equipped with an exclusive database expert management system.

Model:FIT-110

Send Inquiry

Product Description

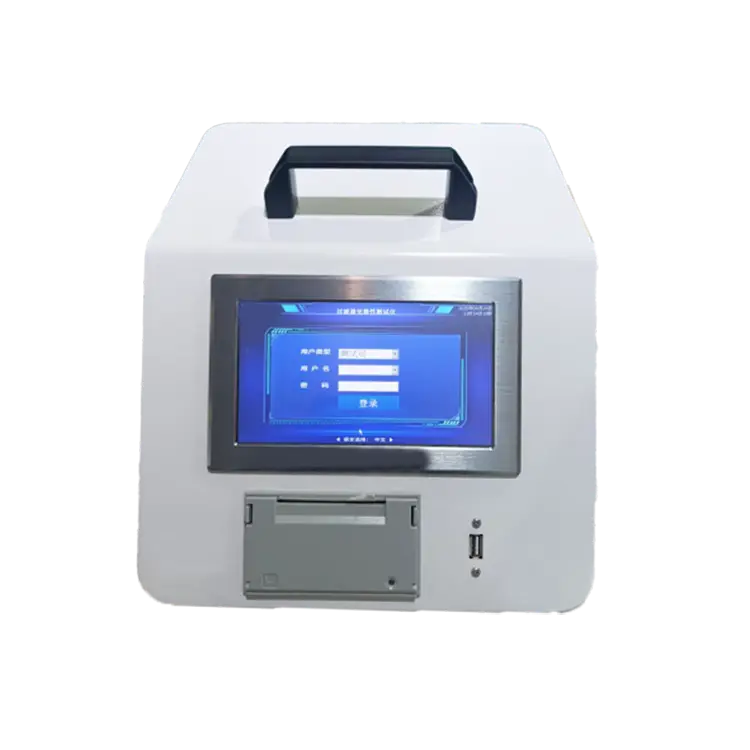

FIT-110 Filter Integrity Tester Sterile Filtration Validation

Features

High intelligence: the test process is fully automatically controlled, without manual intervention;
High reliability: high detection accuracy and good reproducibility;
High user-friendly: touch screen input, friendly operation interface;
Multi-function: can be used to test single-core filters, multi-core filters, and multiple test functions;
High integration: the Filter Integrity Tester Sterile Filtration Validation adopts a portable design, small size, and easy to use;
High-tech: uses ARM11 controller and Windows CE 6.0 system;
High practicality: data storage and real-time printing of test results, in line with GMP requirements.

Application

Disc membrane: various membranes from Φ25mm to Φ300mm
Standard cartridge: 2.5″ to 40″, 1 to 9 cores
Capsule
Mini cartridge
Air filter testing 2.5″ to 40″ other parameter cartridges

Specifications

Power supply/power	170-240V AC, 50/60Hz 100W
Maximum operating pressure	6000 mbar
Minimum inlet pressure	200 mbar
Dimensions	40cm(width) x30cm(depth) x 25cm(height)
Test range	forward flow: 0.1-200ml/min water immersion: 0.05-50ml/min Bubble point: 700-6000mbar
Test accuracy	±3% or ±5‰F.S, whichever is greater
Sensitivity	forward flow: 0.1ml/min water immersion: 0.01ml/min bubble point: 50mbar
Repeatability error	≤3%
Operating conditions	Ambient temperature: 0℃- 50℃ Relative humidity: 10-80%
Test time	Basic bubble point Diffusion flow test: 2 min±2min test 7±2min Water immersion flow test 7±2min System air tightness: 3±1min
