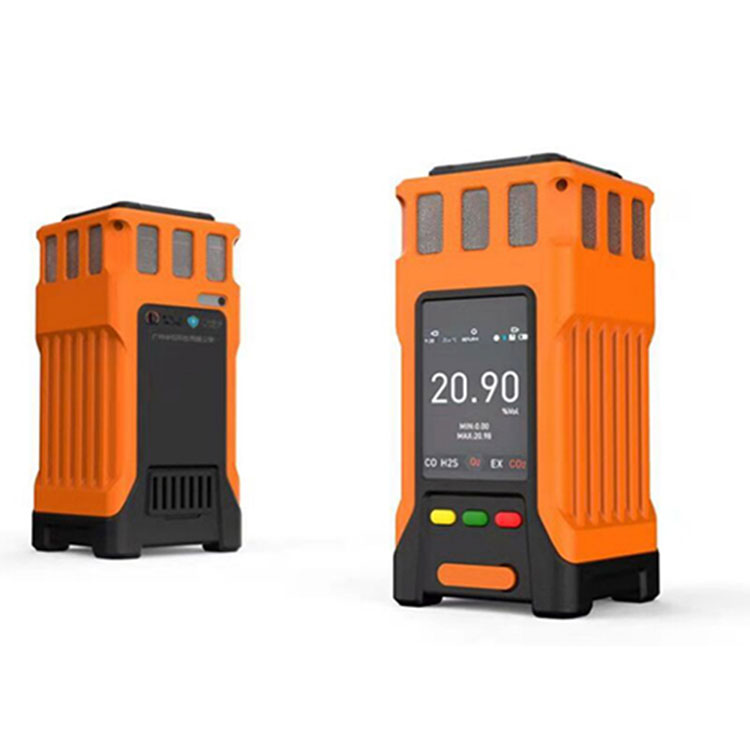

Gas Environmental Monitoring Alarm

The China Zetron Gas Environmental Monitoring Alarm provides continuous monitoring of gas levels in the environment. It alerts users to potentially hazardous gas concentrations, ensuring safety in industrial, commercial, and residential spaces. With customizable alarm settings, it offers real-time detection and notification of gas leaks or dangerous levels, helping prevent accidents and ensuring compliance with safety regulations.

Model:PTM600-S-AQI

Send Inquiry

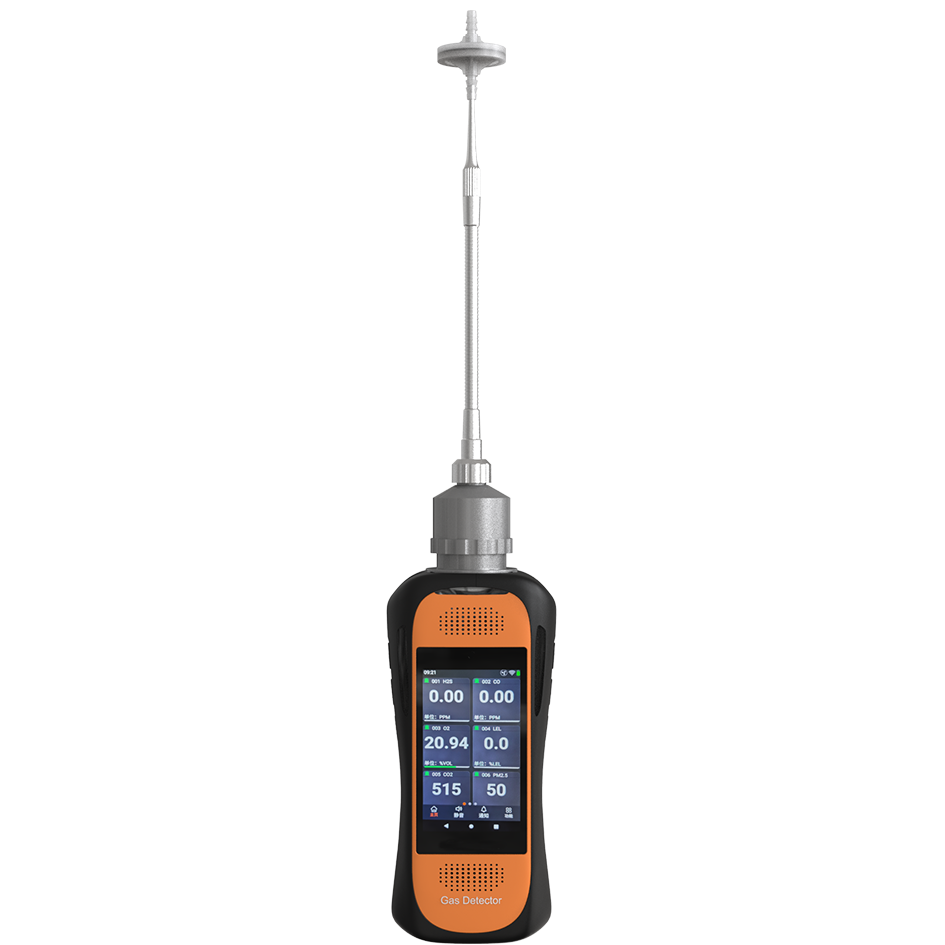

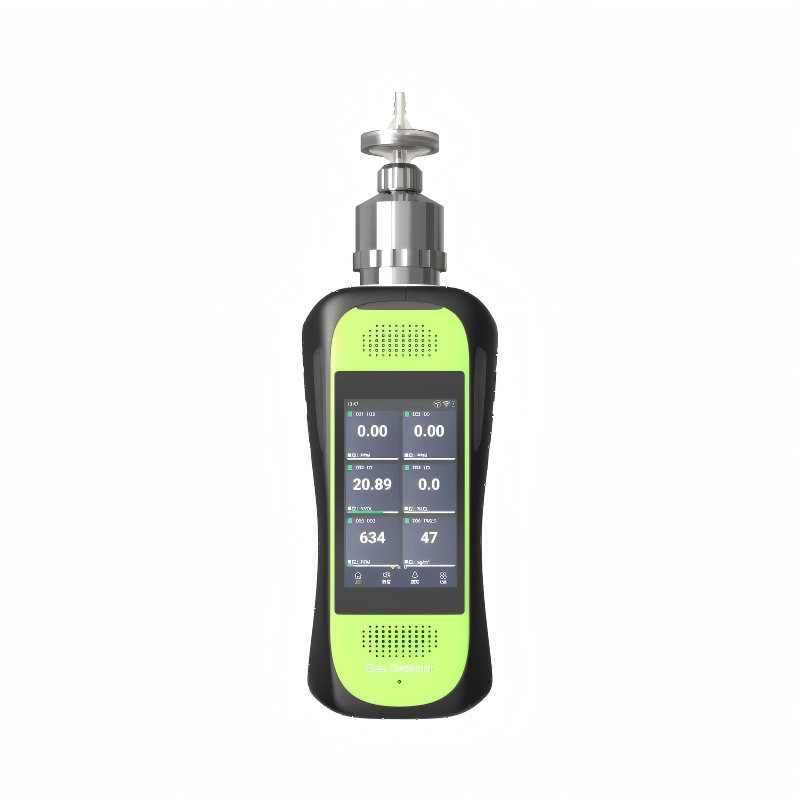

MS600-S2-AQI Portable Intelligent Air Quality Monitor

Wireless interconnected multifunctional gas environmental monitoring alarms enable individual gas detection and area monitoring, keeping workers aware of their surroundings by sharing gas readings and alarm information between gas monitors. It is suitable for dangerous or hazardous spaces, such as tunnels, culverts, storage rooms, and other restricted spaces where the air can not be circulated. The system could easily transport the monitoring and alarms among the monitors or apps, better to know the area situation by sharing gas readings and alarm information and make faster, more informed safety decisions.

Gas Environmental Monitoring Alarm FEATURES

l ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved

l Upto 6 gases simultaneously detection

l Android OS, support remote maintenance and OTA remote wireless upgrade

l GPS/Beidou precise positioning, LED lighting, SOS one-key call for help, 3D intelligent fall alarm, one-key positioning upload

l Built-in pump with 1000ml/m flow rate, 0.2m swan sampling probe

l Alarm types: LOW, HIGH, TWA ,STEL, alarm, concentration alarm, under pressure alarm, fault alarm, pump blockage alarm, man fell down alarm

l Alarm mode: sound and light alarm, sound and light + visual alarm, vibration alarm, voice (multi-language) alarm

l Communication: Type C, WiFi and Bluetooth

l Optional: Bluetooth printer, 4G, Display user information, real-time location, concentration information, longitude and latitude, custom address information, track query on the map,One-click photo taking (＞ 800W pixels)

l PC software for data acquisition and analysis

l 4 inch High-definition color screen, touchable screen, 800*480 pixels

l Zero point automatic tracking

l Automatic calibration with calibration system or manual calibration

l 16G big storage, 10,000,000 logs

l Anti-drop height: ≥ 2 meters

l High-strength, corrosion-resistant, fire-resistant polycarbonate and rubber protective housing,anti-fall, wear-resistant and anti-static

Detecting gas	Hydrogen sulfide (H2S), carbon monoxide (CO), combustible (EX), oxygen (O2)
Detection principle	Hydrogen sulfide, carbon monoxide, oxygen: imported electrochemical sensors, Combustible: import catalytic combustion
Detection range	Hydrogen sulfide: 0 ~ 100PPM
	Carbon monoxide: 0~1000PPM
	Oxygen: 0-25%VOL
	Combustible gas: 0-100%LEL
Resolution	H2S: 0.1PPM
	CO:1PPM
	O2:0.01%VOL
	EX:0.1%LEL
Signal output	Support 485, 4-20mA, LORA wireless transmission.This project mainly focuses on 4G network transmission (other wireless transmission functions can be customized, such as: zigbee, 433, WIFI, etc.)
Response time	T90≤20seconds
Working conditions	Temperature: -20℃-50℃; Humidity: 0-90%RH (no condensation)
Explosion-proof grade	Exd IICT6
Working voltage	12～30V (DC DC, the standard power supply of single device is 24V, 1A or DC switching power supply more than 1A)
Protection level	IP66 splash and rainproof
Video monitoring	2.2 megapixel, support infrared night vision, customizable gimbal, zoom camera
Location information	Support GPS/BeiDou positioning

It is suitable for dangerous or hazardous spaces, such as tunnels, culverts, storage rooms, and other restricted spaces where the air can not be circulated.
