Handheld Organic Gas Analyzer

Features

• Miniature FID detector with performance comparable to online systems.

• EPC precisely controls hydrogen flow rate to ensure data accuracy.

• Solid-state hydrogen storage cylinder provides safe and stable hydrogen supply.

• Detachable and quickly replaceable battery for long-lasting operation.

• 3.5-inch screen and buttons for two-step detection startup.

• Reserved interface for expandable sensors.

• Stable and reliable signal processing technology.

• Fully digital monitoring and intelligent diagnostics.

• Explosion-proof rating: Ex db ia IIC T4 Gb.

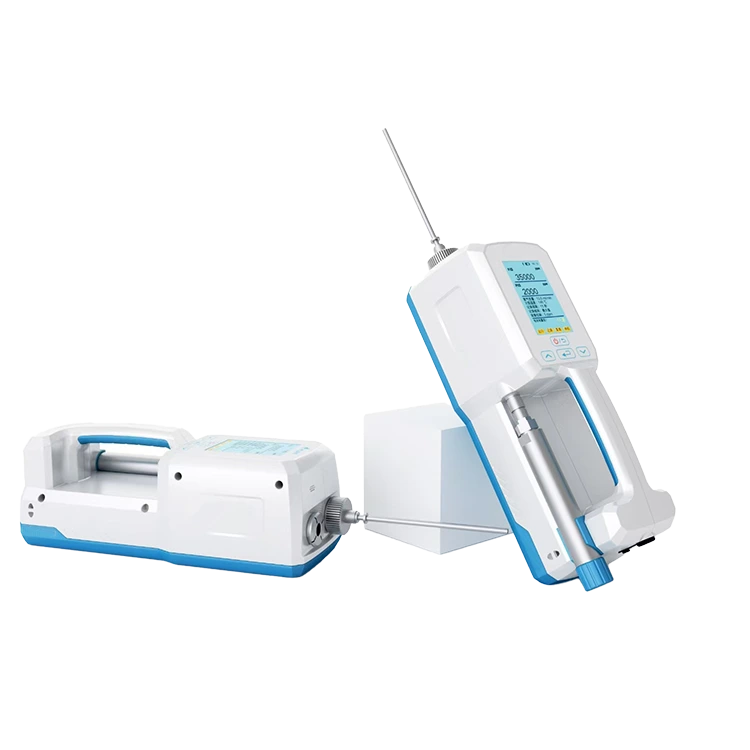

The PTM100-H handheld organic gas analyzer comes standard with a flame ionization detector (FID) and can be optionally equipped with a photoionization detector (PID). It features explosion-proof and intrinsically safe design, weighs only 1.6kg, making it lightweight and portable. It can effectively detect most volatile organic gases and some inorganic gases, and is suitable for applications such as LDAR testing, leak detection in oil and gas collection and recovery systems, VOCs detection from leaks and open liquid surfaces, and rapid identification and comprehensive regional surveying of soil pollutants.

Core Features

• Dual detection technology, flexible adaptation

• FID (standard): detection range 0~50,000 ppm, suitable for high concentration VOCs detection, strong stability.

• PID (optional): detection range 0~2,000 ppm, high sensitivity, suitable for rapid screening of low concentration gases.

• Safe and reliable, explosion-proof design

• Passed Ex db ia IIC T4 Gb explosion-proof certification, suitable for hazardous locations such as petrochemical and chemical industries.

• Solid-state hydrogen storage technology, no leakage risk, long battery life, ensuring long-term operation safety.

• Lightweight , efficient, intelligent operation

• The 1.6kg ultra-light body can be held in one hand, making it easy to handle outdoor and high-altitude operations.

• 3.5-inch touch screen + physical buttons, simple operation, two-step test, the results are clear at a glance.

• Quick response, accurate and stable

• T90 response time ≤ 3.5 seconds, capturing gas concentration changes in real time.

• ±10% or ±1 ppm high accuracy (whichever is greater), reliable data and excellent repeatability.

Core Features

• Intelligent diagnosis : Digital monitoring of operating parameters and automatic fault reminder

• Expandability : Reserved interfaces for sensors such as H₂S and CO

• Stability : Signal amplification and drift correction technology

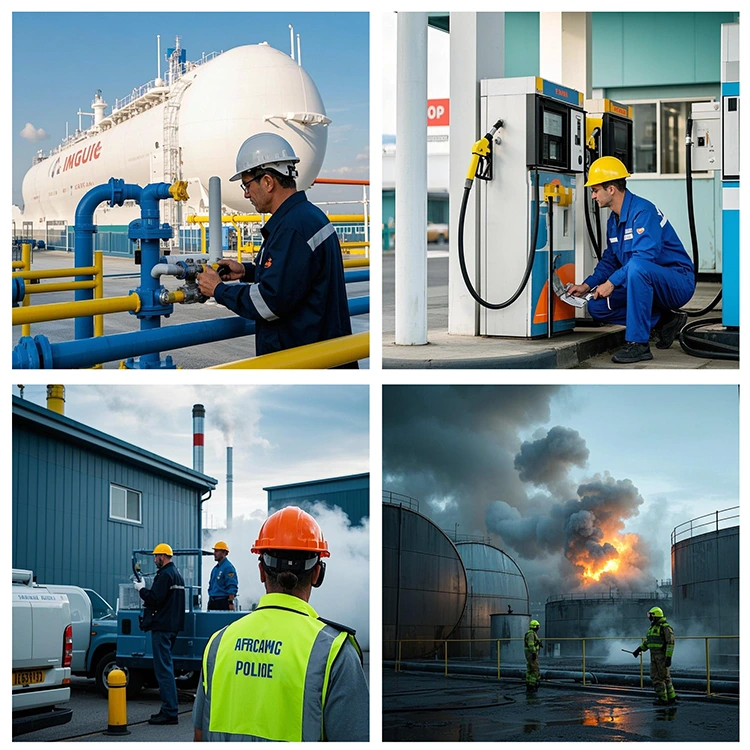

• LDAR (Leak Detection and Repair): Leak detection at sealing points in petrochemical, pharmaceutical, and other industries.

• Oil and Gas Recovery Systems: Leak detection at sealed points in gas stations and oil depots.

• Environmental Monitoring: Detection of leaked liquids and fugitive VOC emissions.

• Soil Pollution Investigation: Rapid screening of volatile pollutants in soil and groundwater.

• Emergency Response: Rapid identification and assessment of hazardous gases at accident sites.
