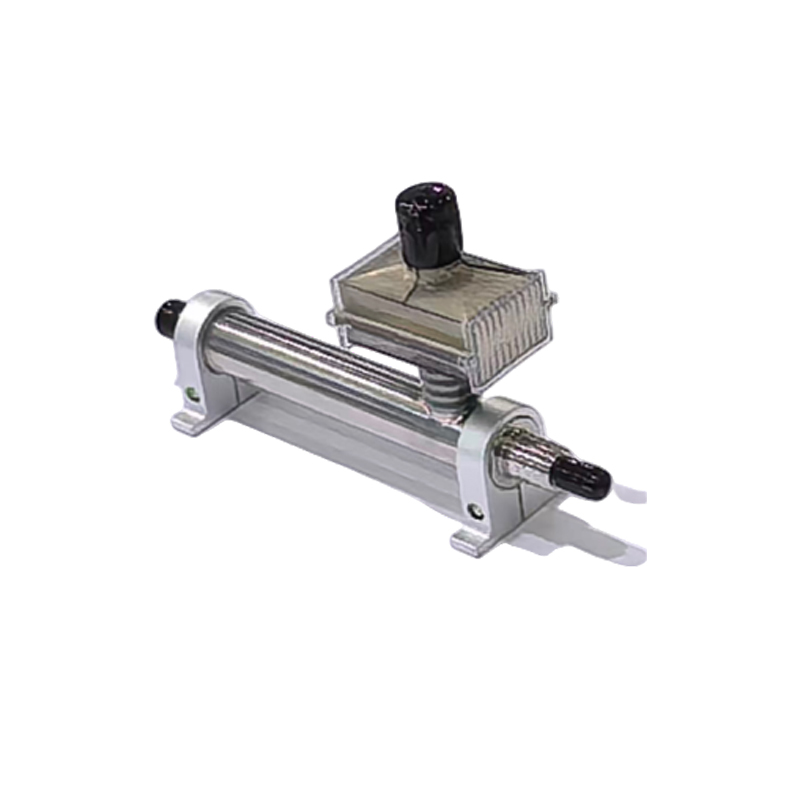

High-Pressure Diffuser

The GKQ-II High-Pressure Diffuser addresses core compressed gas monitoring requirements by delivering precise pressure reduction and airflow regulation, supplying stable and reliable sampling gas sources for downstream detection equipment.

FEATURES:

The GKQ-II high pressure diffuser is designed for safe pressure reduction and stable sampling of compressed gases before particle or microbial testing. It converts high-pressure air or inert gases to atmospheric pressure and delivers clean, steady flow to downstream instruments such as airborne particle counters (APC) and biological air samplers (BAS). Compliant with ISO 8573-4, it features an integrated exhaust filter to minimize cross-contamination and supports multiple flow rates of 28.3, 50, and 100 L/min for reliable cleanroom and compressed gas monitoring applications.

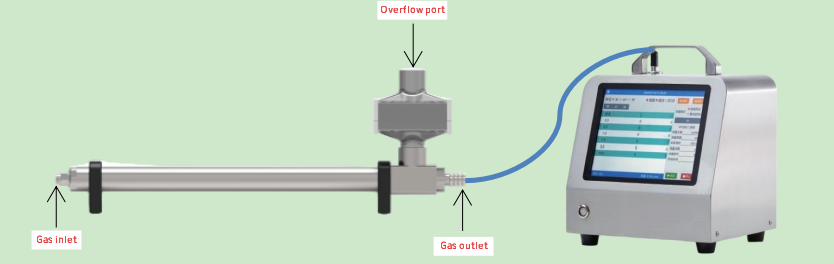

Compressed gas is depressurized to atmospheric pressure by a high-pressure gas diffuser and then transported to the downstream sampling/detection device for sampling or detection.

Widely deployed in cleanrooms and diverse industrial gas quality control applications, it serves as a critical pre-treatment device ensuring the accuracy of detection data.
