Infrared Gas Analyzer

Model:MIC300-F08

The MIC300-F08 Infrared Gas Analyzer from Chinese gas equipment manufacturer Zetron is a non-dispersive infrared analyzer equipped with a dot-matrix LCD display. Utilizing imported infrared sensors and advanced digital processing technology, it enables continuous online analysis of gases such as CO, CO₂, CH₄, NH₃, H₂S, and SO₂. Click here for more details.

Model:MIC300-F08

Send Inquiry

FEATURES:

Infrared gas analyzers are non-dispersive infrared analyzers, employing a 128*64 dot-matrix LCD display . Their working principle is based on the selective absorption of infrared radiation by certain gases. Using imported infrared sensors and advanced digital processing technology, they achieve continuous online analysis of gases such as CO, CO2, CH4, NH3, H2S, and SO2 . They are widely used in the online continuous analysis of gases from air pollution sources, steel smelting, petrochemicals , agriculture , medical and health care, scientific research , and the building materials industry .

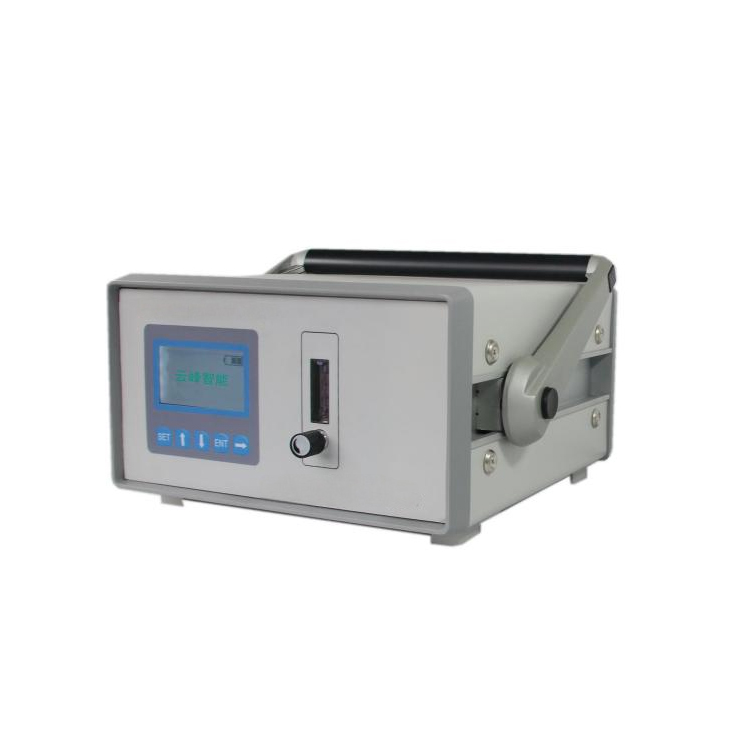

MIC300-F08 Infrared Gas Analyzer

Detection Gas:CO2

The instrument is widely used in the field of online continuous gas analysis across a range of industries, including air pollution sources, steel smelting, petrochemicals, agriculture, healthcare, scientific research, and building materials.

Components	CO2 (Customizable upon request; please specify when ordering)
Measurement range	0-20 % / 50 % / 100% (Measuring range can be customized)
point Distinguish Rate	0.1% / 1%
Measurement accuracy	≤±2%FS
Heavy complex sex	≤±1%FS
stable Certainly sex	≤±1%FS /7d
Response time	T90 ≤30S
Sample gas flow rate	10 00±50 mL/min
Sample gas pressure	0.10 MPa ≤ Inlet pressure ≤ 0.20 MPa
Sample gas temperature	0-50 ℃
Ambient temperature	-5℃ to + 50 ℃
Ambient humidity	≤90%RH
Charging power supply	100～240VAC 50/60Hz 1A
Standby time	A single charge can last for 8-12 hours
External dimensions	260mm (width) x 145mm (height) x 330mm (depth)
Instrument weight	Approximately 4 kg
Measurement principle	Non-dispersive infrared
Measuring medium	Argon gas (must be specified when ordering)
Instrument lifespan	More than five years (normal use)
Sensor lifespan	More than three years (normal use)
Precision air pump	Use under negative or normal pressure conditions for the sample gas (must be specified when ordering)
