Intelligent Portable Flue Gas Analyzer

Model:MS700-FG

The China Zetron Intelligent Portable Flue Gas Analyzer features high integration and a portable design to meet multi-parameter industrial flue gas monitoring requirements, making it a reliable choice for enterprises seeking efficient flue gas monitoring equipment.

Model:MS700-FG

Send Inquiry

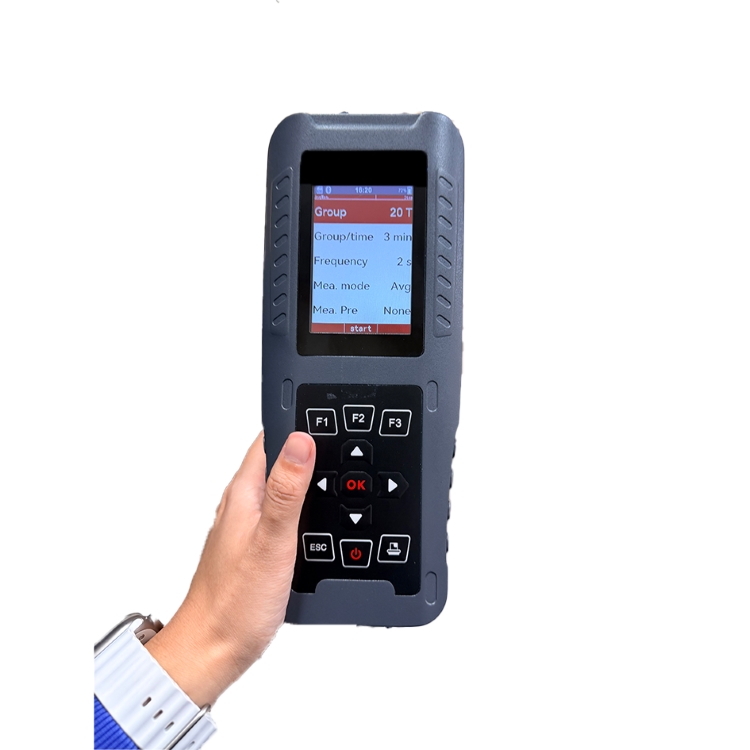

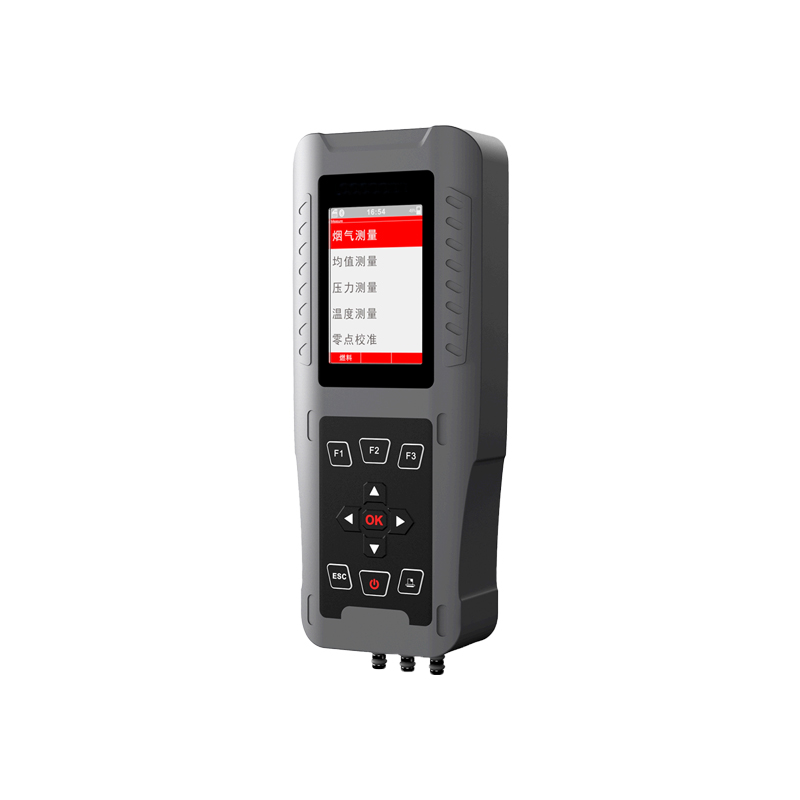

The device features a handheld design, making it compact and lightweight, with multi-functional capabilities: it can accommodate up to 7 parameters, with optional sensors for O₂, CO, NO, NO₂, SO₂, H₂S, NH₃, CO₂(NDIR), N₂O(NDIR), CH₄(NDIR), etc.; Intelligent Portable Flue Gas Analyzer can measure flue gas temperature, ambient temperature, and flow rate/volume; and it automatically calculates CO2, excess air coefficient, combustion efficiency, heat loss, and other parameters.

Application

Commissioning, tuning, and maintenance of industrial boilers and burners
— Power plants, heating stations, steam boilers, thermal oil boilers
Emission monitoring and environmental compliance testing
— Flue gas composition analysis / on-site stack gas inspection
Combustion optimization & energy efficiency assessment
— Calculation of excess air coefficient, combustion efficiency, & heat loss

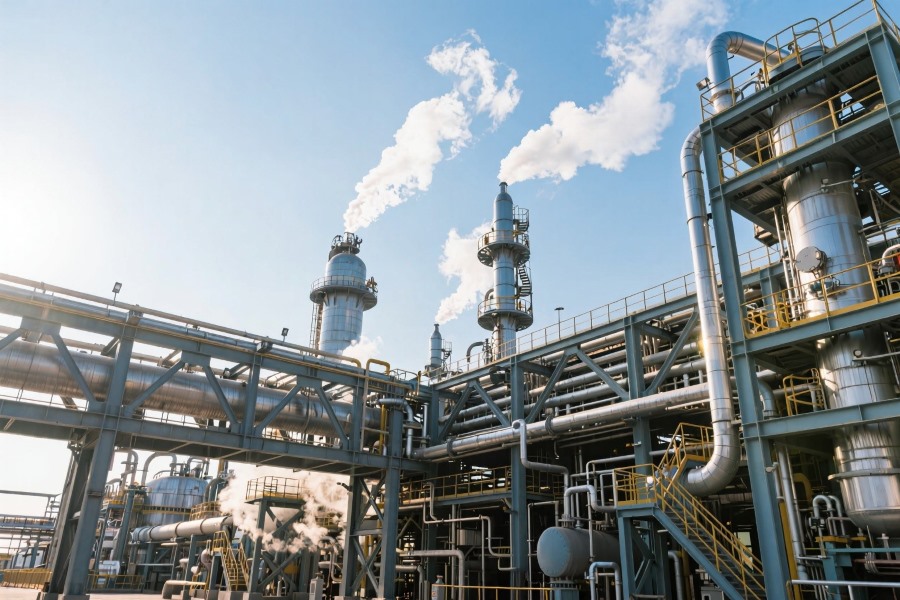

Process gas analysis in chemical & petrochemical industries
— Process furnaces, cracking units, reactors, flare systems
Engines, turbines, and industrial power systems
— Marine diesel engines, gas engines, gas turbines, CHP systems
Metallurgy, cement, glass, and building materials industry
— Kilns, furnaces, lime kilns, sintering processes
Waste incineration & biomass combustion monitoring
— Hazardous waste incinerators, RDF, biomass boilers
Safety inspection & leakage tracing in confined gas systems
— Screening of toxic / corrosive gases & combustion-related pollutants

The instrument provides fast response, high-precision flue gas measurement, and real-time calculation of key combustion indicators, helping engineers improve system efficiency, reduce fuel consumption, and support regulatory environmental compliance.

Equipped with a cross-interference compensation system, ensuring accurate detection.
It can be adapted to install two sensors of the same type but with different concentrations, allowing for instant switching between high and low concentration detection modes.
Can replace the same gas sensors or add new gas sensors in site if the customer can do calibration by standard gas ; needn't send back to factory.
The instrument features automatic sensor detection and zero-point calibration upon power-on.
Three-stage treatment system: High-performance self-developed Peltier cooling system (optional), automatic water vapor separation device, and high-end water cutoff filter.
Equipped with a built-in Beidou positioning and satellite timing system, the data is traceable and verifiable.

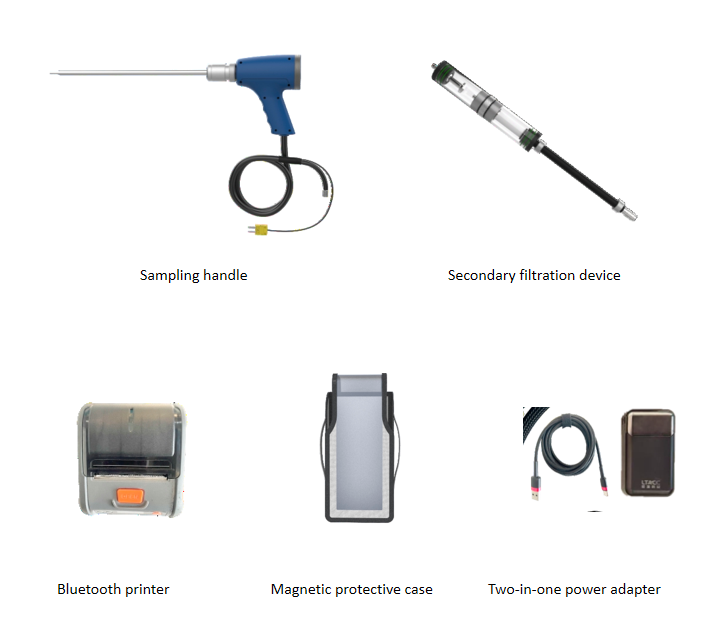

The measurement process can be monitored remotely via mobile phone; an optional Bluetooth printer is available for automatic printing of average measurements.
This highly integrated, low-power device features a built-in rechargeable lithium battery, providing up to 8 hours of continuous operation. It can also be charged while in use.
Monitoring data: complete, accurate, and traceable; parameters and logs are recorded fully automatically.
Features include adaptive measurement for sensor overload, data encryption for storage and export, and interfaces such as a memory card slot and Type-C port.
The built-in instrument diagnostic program can monitor various instrument performance parameters in real time, such as airtightness self-check and sampling flow monitoring.

Measurement parameters
Parameter	Measurement range	Accuracy	Minimum resolution
O2	0~25/100 Vol.%	±0.2 Vol.%	0.01 Vol.%
CO(T9≤10S)	0~5000/10000 ppm	±5 ppm (0~100ppm) ±5% (≥100 ppm)	0.1 ppm
SO2 (T90≤20S)	0~5000 ppm	±3 ppm (0~60 ppm) ±5% (≥60 ppm)	0.1 ppm
NO(T90≤10S)	0~5000 ppm
NO2 (T90≤30S)	0~1000 ppm	±5 ppm (<100 ppm) ±5% (≥100 ppm)	0.1 pp m
Combustion efficiency	0.0~100.0%		0.1%
Flue gas temperature Tgas	-20~650℃	±1.0%	0.1℃
Ambient temperature Tair	-5℃~50℃	±1.0%	0.1℃
Pump load capacity	Negative pressure -60kPa Positive pressure 20kPa
Sampling probe	φ10×1000 mm , temperature resistance 650℃
Work environment	Ambient temperature -5℃ to 50℃, relative humidity (0 to 95)% RH
Overall dimensions	250mm x 102mm x 52.5mm

Measurement parameters
Parameter	Measurement range	Accuracy	Minimum resolution
CO (H2 compensation )(T9≤10S)	0～2000 ppm	±5 ppm (0~100 ppm) ±5% (≥100ppm)	0.1 ppm
COlow(T90s≤10S)	0~500 ppm		0.1 ppm
CO (H2 compensation)(T90s≤10S)	0～2000 ppm		0.1 ppm
SO2 (with CO interference)(T90≤20S )	0~5000 ppm	±3 ppm (0~60 ppm) ±5% (≥60ppm)	0.1 ppm
SO2low( T90≤20s)	0~300 ppm	±3 ppm (0~60 ppm) ±5% (≥60ppm)	0.1 ppm
NOlow(T90≤10s)	0~300 ppm	±5 ppm (<100 ppm) ±5% (≥100 ppm)	0.1 ppm
NO2low(T90≤30S)	0~100 ppm	±5 ppm (<100 ppm) ±5% (≥100 ppm)	0.1 ppm
CO2( NDIR)	0~20/100Vol.%	±2%FS	0.01 Vol.%
H2S(T90≤15S)	0~500 ppm	±5 ppm (<100 ppm)	0.1 pp m
NH3(T90≤60S)	0~100 ppm	±5 ppm (<100 ppm)	1 ppm
N2O ( NDIR)	0~1000 ppm	±20 ppm	1 ppm
CH4 (NDIR)	0～1 Vol.%	±100 ppm	100ppm
Excess air coefficient	0.00~1.99		0.01
Flue pressure Pd	-300hPa~300hPa	±1.0%	0.01hPa
flue gas velocity Spd	0.1~100m/s	±1.0%	0.1m/s
Sampling rod specifications
Custom sampling probe	010x300 mm , temperature resistant 650℃	Custom sampling probe	ø10×500 mm , temperature resistance 1100℃
	⑦ 10×500 mm , temperature resistant 650℃		ø10×1000 mm , temperature resistance 1100℃
	⑦ 10×1000 mm , temperature resistant 650℃		ø10x1500 mm , temperature resistant 1100℃
	⑦ 10×1500 mm , temperature resistant 650℃		High humidity and low sulfur professional sampling probe
	⑦ 10×2000 mm , temperature resistant 650℃		With sintered pre- filter
