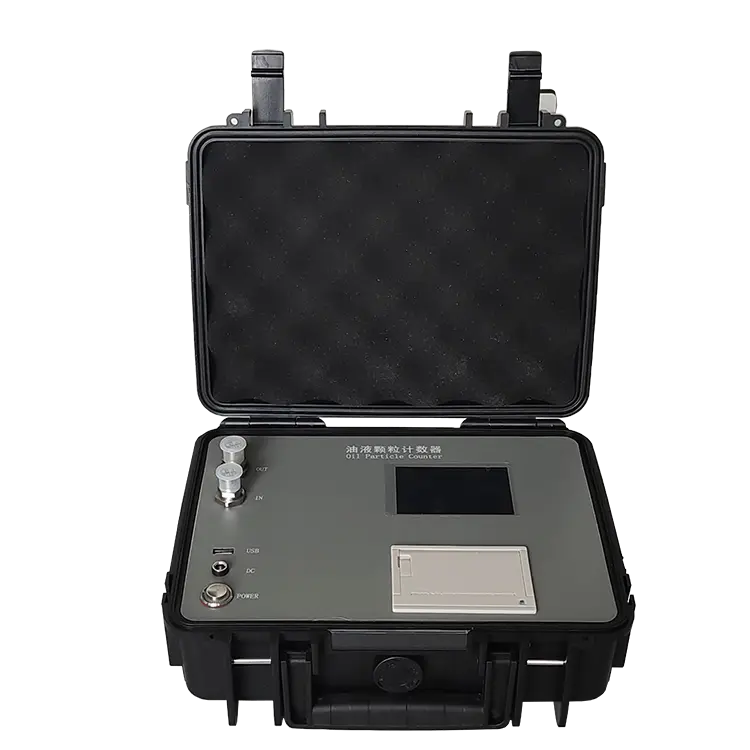

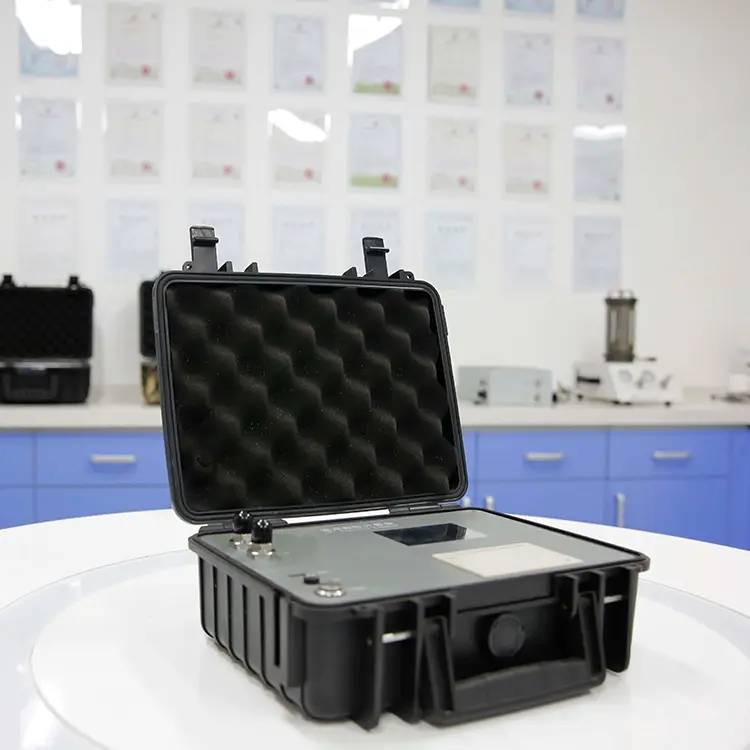

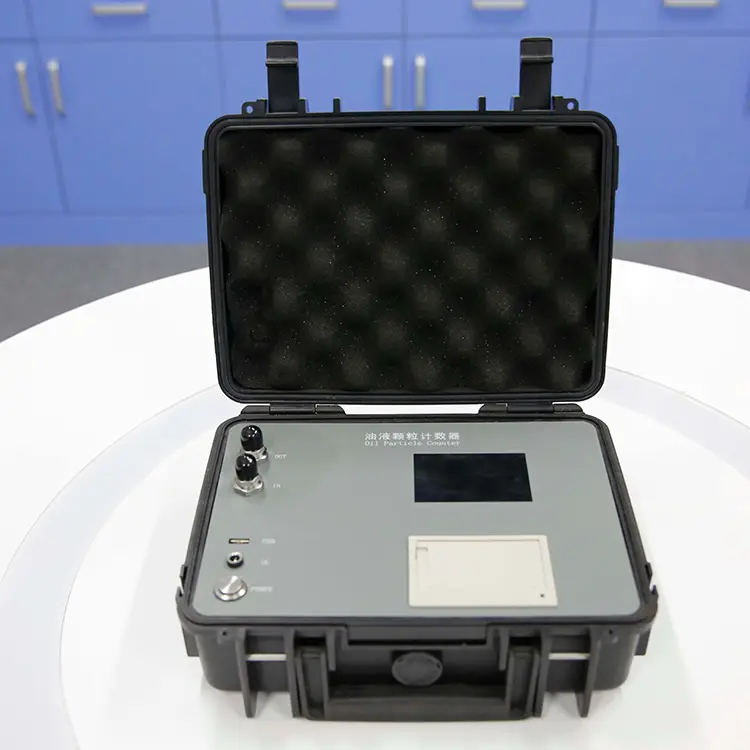

OPC-P5 portable oil particle counter is an instrument specially developed for oil pollution level detection according to national and international standards such as GB/T 18854-2002 (ISO11171-1999). It is suitable for on-site and laboratory pollution detection of hydraulic oil, lubricating oil, shale oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, phosphate ester oil and other oils. It can also be installed on various hydraulic transmission, oil filter, cleaning machine, test bench and other systems to realize online detection of system oil cleanliness. It can be widely used in aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.

Product Features

Adopting the principle of light blocking (shading) method and using high-precision laser sensor, it has small size, high precision and stable performance.
Suitable for laboratory or on-site testing, can be connected to an external pressure chamber to form positive/negative pressure, to achieve high viscosity sample testing and sample degassing
Built-in data analysis system, which can display the real data of particle size in each channel and automatically determine the sample grade
The pipeline is made of 316L and PTFE materials to meet the detection of various organic solvents and oils.
It has volume flushing and time flushing modes, which is convenient for users to use and maintain the equipment
Built-in ISO4406, NAS1638, SAE4059 (integral and differential), GJB420A, GJB420B, Г OCT17216 , GB/T14039 and other particle pollution level standards
Built-in calibration function, can be calibrated according to GB / T21540 , ISO4402, GB / T 18854 and other standards
Built-in data analysis system, can automatically determine the grade according to the standard, with automatic data processing and printing functions
Built-in water sensor and temperature sensor
Chinese and English bilingual, one-touch switching, with preset, parameter modification and storage functions, easy and fast operation
Large storage capacity, can be stored in the instrument or external storage device
Embedded design , high-strength shell, easy to carry, suitable for all kinds of engineering machinery

Light source	semiconductor laser
Offline detection speed	5-60mL/min (factory default 25ml/min)
Offline sample viscosity	≤100cSt (optional pressure chamber for high viscosity)
Particle size range	1-500μm
Interface	USB interface, power interface
Data storage	Provides 1,000 sets of data storage space and supports USB storage
Sensitivity	0.8μm or 4μm (c)
Limit coincidence error	40,000 particles/ml
Counting volume	1-999 ml (10 or 20 ml recommended)
Counting accuracy	error less than ±10%
Protection level	IP 67
Test time interval	1 second - 24 hours
Detection sample temperature	0-80℃
Water activity reference value	0-1aw
Water content	0-360ppm
Working temperature	-20-60℃
Power supply	AC 220V±10 % , 50/60Hz or DC12-40V
Weight	2.5kg
Volume	275×220×107mm
