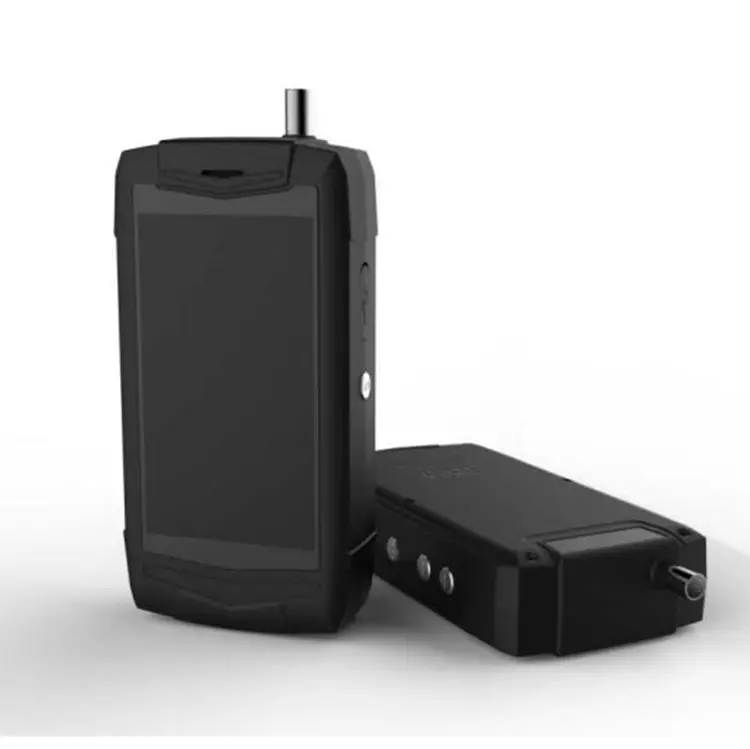

MS650 Handheld Raman Dangerous Goods Item Inspection Instrument

MS650 Laser Raman spectroscopy drug detector is a security inspection instrument for anti-terrorism, drug control and epidemic prevention. It is used for Raman spectrum detection of explosives, drugs, precursor chemicals, alcohol and psychotropic drugs in various forms such as liquid, solid, powder and aqueous solution. The equipment adopts the most advanced laser Raman spectroscopy analysis method, integrating sampling, detection, spectrum scanning and processing, database search, similarity comparison and recognition. It is easy and fast to operate, and automatically calibrates when it is turned on. The handheld laser Raman spectrometer is small in size, light in weight, easy to carry, simple to operate, and can accurately and quickly detect and analyze the composition of substances.

Send Inquiry

Physical parameters
Machine size	180* 95 *38mm
Machine weight	< 800g
Input Interface	Micro USB
Performance parameters
Spectral range	200 cm ^-1～3200 cm ^-1
Wavelength resolution	15cm ^-1@1000 cm ^-1
Excitation wavelength	785± 0.5 nm, line width ＜ 0.1nm
Laser life	10 ,000.00hrs
Supply voltage	DC5V power adapter
Output Power	0 ~ 500mW adaptive
Integration time	1 ms-10S self-applicable
Probe Rayleigh scattering cut-off depth	OD 6
Probe working focal length	7.5mm
Camera	8 megapixels
touchscreen	720*1280 resolution capacitive screen
Three protection standards	IP65
network	4G/WIFI/Bluetooth/ GPS
Environmental parameters
Operating temperature	0 ~ 45 ℃
Operating humidity	5% -80 %
