An all-round gas detection tool? A comprehensive review of the PTM600-S multi-function gas analyzer from Zetron Technology!

An all-round gas detection tool? A comprehensive review of Zetron Technology's PTM600-S multifunctional gas analyzer!

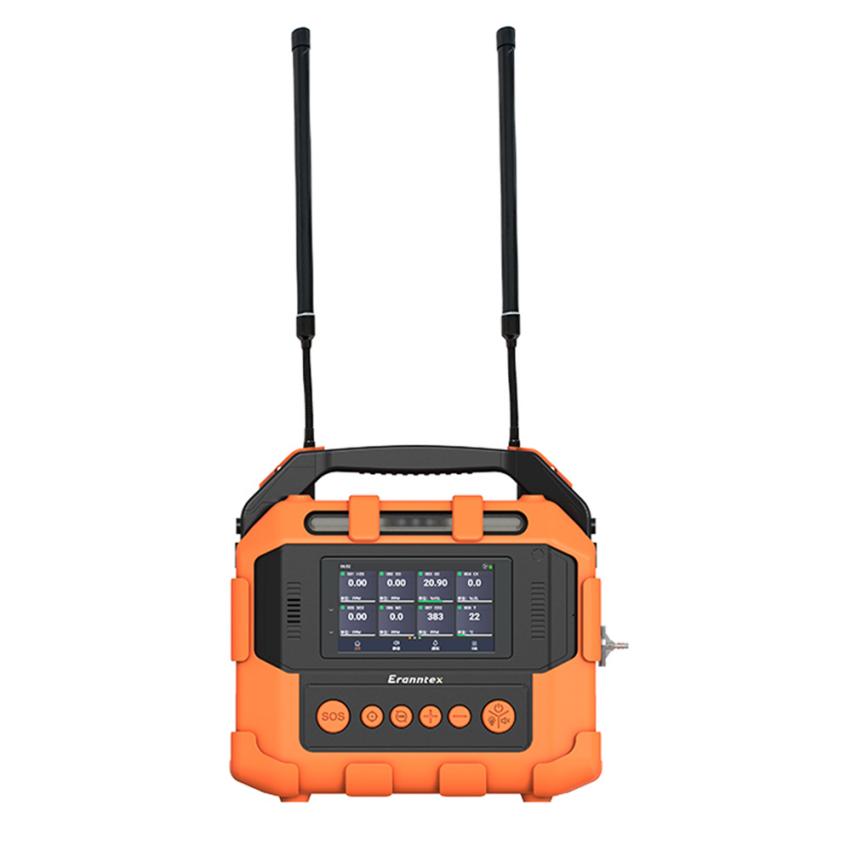

In the field of industrial safety and environmental monitoring, a device that integrates precise detection, intelligent interconnection and portable operation is essential. Zetron Technology's PTM600-S portable multifunctional gas analyzer has become the preferred tool for fire protection, chemical industry, environmental protection and other industries with its full-scene adaptation capabilities and modular innovative design. Next, the editor of Zetron Technology will interpret this gas detector from the core functions, technical highlights and application scenarios.

A comprehensive review of the functions of Zetron Technology's portable multifunctional gas detector (PTM600-S):

1. Full-dimensional detection, high-precision sensing

This portable multifunctional gas detector from Zetron Technology Electronics breaks through the limitations of traditional single gas detection and can simultaneously monitor multiple parameters such as gas concentration, temperature and humidity, particulate matter, pressure difference, wind speed and direction, illumination, noise, etc. The specific detection type is determined by the internal sensor configuration. It adopts multiple detection principles such as electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoionization, etc., covering hundreds of gas types such as combustible gases, toxic and harmful gases, volatile organic compounds (VOCs), etc. In addition, the instrument supports flexible unit switching (umol/mol, ppm, mg/m³, etc.), adapts to different industry standards, and the data display is intuitive and easy to understand.

1. Emergency prevention scenario: It can quickly detect the concentration of carbon monoxide (CO) and hydrogen sulfide (H₂S) in the fire scene, and use temperature and humidity data to assist in judging the risk of fire spread;

2. Industrial production scenario: Detect hydrocarbons such as methane (CH₄) through the infrared principle, monitor the lower explosion limit (% LEL) of combustible gases through the catalytic combustion principle, and warn of leakage risks in real time.

2. Modular design, plug and play

The modular architecture of the sensor of the portable multi-functional gas detector is one of its core innovations. The device can load 4 six-in-one modules at the same time, each module integrates independent gas circuits and communication interfaces, and supports snap-on quick plug-in and pull-out. This design brings three major advantages:

1. Quick response to demand: Replace modules according to the detection task (such as switching from "VOCs detection" to "dust particle monitoring"), no need to return to the factory for debugging, and complete functional reconstruction on site;

2. Low maintenance cost: A single module failure can be replaced independently to avoid the whole machine downtime, and the maintenance efficiency is improved by more than 50%;

3. Flexible development capabilities: Support customized module development to meet the exclusive detection needs of special scenarios such as petroleum refining and pharmaceutical storage.

3. Intelligent interconnection: full chain upgrade from data collection to emergency command

As a new generation of intelligent detection equipment, this portable gas detector from Zetron Technology is deeply integrated into the digital ecosystem:

1. Operation and display: 7-inch high-definition color screen with capacitive touch, the interactive interface developed based on the Android system supports OTA remote wireless upgrade, and functional iteration does not require physical contact with the device;

2. Data storage and transmission: built-in 16G storage space (expandable), supports local storage, cloud synchronization (via 4G network) and Bluetooth printing, data can be retrieved in multiple dimensions by time, location, and parameter type;

3. Real-time positioning and emergency linkage: standard GPS/Beidou dual-mode positioning, combined with 4G network, can display personnel location, gas concentration, longitude and latitude and other information on the management platform map in real time, and support trajectory backtracking and historical data comparison. The device also has SOS one-key call for help, three-dimensional fall alarm, and one-key positioning upload functions, linking the backend command center to quickly respond to dangerous situations.

4. Industrial-grade protection, a reliable partner in complex environments

Facing harsh scenes such as flammable and explosive, high humidity and high dust, the gas detector is based on intrinsically safe circuit design and has passed multiple protection certifications:

1. Explosion-proof level: in line with GB/T 3836.1/4-2021 standard, suitable for explosive gas environments;

2. Physical protection: IP66 protection level can resist strong dust intrusion and heavy rain erosion, the fuselage is shock-resistant and fall-resistant, and adapts to extreme environments such as fire rescue and confined space operations;

3. Long-term stability: The built-in pump suction sampling system supports 10 levels of flow adjustment, with zero point automatic tracking and multi-level calibration functions to ensure the accuracy of long-term continuous monitoring.

5. Application scenarios

1. Fire prevention and emergency rescue

Before entering the fire scene, the gas detector can quickly detect oxygen (O₂) and toxic gas concentrations to evaluate safety access conditions; during the rescue process, real-time data is transmitted back to the command center to dynamically adjust the rescue route to avoid the risk of poisoning or suffocation of personnel.

2. Petrochemical and gas industry

At leak-prone points such as storage tank areas and pipeline interfaces, PID photoionization principle is used to detect volatile organic compounds (such as benzene and toluene) with an accuracy of up to ppb level; before working in confined spaces, a combination of multiple gas modules (O₂, CO, H₂S, CH₄) is used to complete the triple detection of "oxygen content - toxic gas - combustible gas" to meet safety operation specifications.

3. Safety and occupational health monitoring

Industrial park boundary monitoring, while collecting parameters such as SO₂, NO₂, PM2.5, and analyzing the diffusion trend of atmospheric pollution; workshop working environment assessment: detection of noise, illumination, and benzene concentration, to help enterprises implement occupational health standards.

In summary, this portable multi-functional gas detector redefines the standard of gas detection equipment with "all-round detection, intelligent operation, and industrial protection". Whether it is rapid response in emergency rescue or hidden danger investigation in industrial production, its modular design and intelligent interconnection capabilities can significantly improve work efficiency and safety. With the deepening of digital transformation, Zetron Technology believes that this type of "thinking and interactive" detection equipment will become the core equipment for various industries to build a safety protection system.
