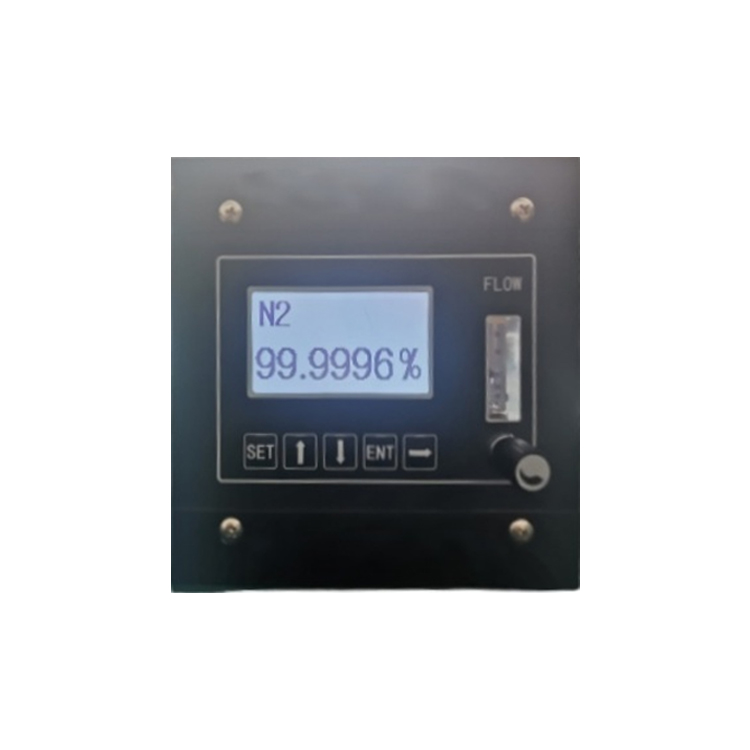

Nitrogen Purity Meter

Model:MIC300-A02

MIC300-A02 Nitrogen Purity Meter employs electrochemical and ion-flow oxygen sensors to precisely calculate nitrogen purity by detecting oxygen content, making it a reliable choice for nitrogen monitoring in steel, air separation, and other industries.

Model:MIC300-A02

Send Inquiry

The MIC300-A02 Nitrogen Purity Meter is specifically designed for nitrogen purity monitoring scenarios, offering stable measurements and rapid response times. The instrument adapts to diverse operating conditions, supports signal output, and features easy installation. It provides reliable purity data support for production processes.

FEATURES:

The nitrogen purity analyzer uses an electrochemical and ion flow oxygen sensor to measure the oxygen content in a gas and calculates the concentration of another gas besides oxygen by back-calculating the percentage. This instrument is widely used in industries such as steel, air separation, and nitrogen generators.

Measurement range	99% - 99.9999 %
Measurement accuracy	≤±2%FS
Heavy complex sex	≤±1%FS
Stable Certainly sex	≤±1%FS /7d
Response time	T 90 ≤30S
Sample gas pressure	0.10 MPa ≤ Inlet pressure ≤ 0.20 MPa
Sample gas temperature	0-50 ℃
Ambient temperature	-5℃ to + 50 ℃
Ambient humidity	≤90%RH
Output signal	4～20mA (Customization available upon request; please specify when ordering )
Operating power supply	00～240VAC 50/60Hz 1A
External dimensions	160mm (width) x 80mm (height) x 170mm (depth)
Opening dimensions	150 mm (width) x 75 mm (height)
Instrument weight	Approximately 1 kg
Measurement Principle	Electrochemical Sensor
Measurement medium	inert gas
Instrument lifespan	Greater than five years (under normal use)
Sensor lifespan	Greater than two years (under normal use)
Precision vacuum pump	For use under negative or normal pressure conditions (must be specified when ordering).
