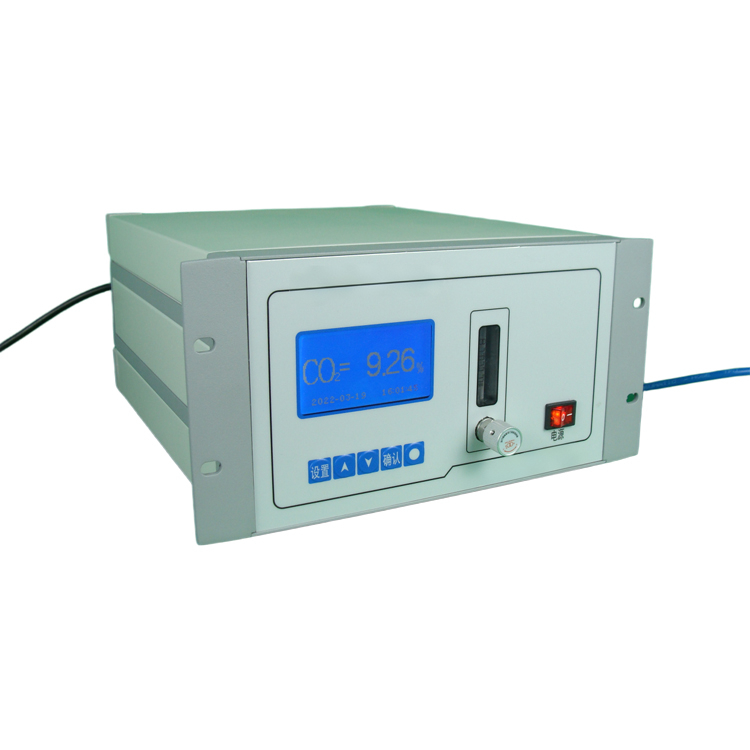

Online Carbon Dioxide Gas Analyzer

Detection Gas: CO2

FEATURES:

The MIC616N Online Carbon Dioxide Gas Analyzer employs a novel gas flow stabilization system. It offers numerous advantages, including advanced technology, high precision, rapid response, stable performance, comprehensive functionality, user-friendly operation, and continuous gas analysis capabilities. It is widely utilized across various industries—such as steel manufacturing, air separation for nitrogen production, petrochemicals, metallurgy, electronics and power generation, healthcare, and food storage—where the detection and analysis of CO2 content within various mixed gas streams are required.

Detection Range: 0.0–30.0% CO2;

Uncertainty: ≤ ±2% F.S.;

Stability: ≤ ±1% F.S./7d;

Repeatability: ≤ ±1%;

Sample Gas Flow Rate: 500 ± 50 mL/min;

Sample Gas Pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

Resolution: 0.1% CO2;

Warm-up Time: 5 minutes;

Contact Capacity: 220 VAC 2A; 24 VDC 2A;

Output Signals: 4–20 mA current signal and RS485 signal;

Overall Dimensions: 270 (W) × 132 (H) × 345 (D) mm;

Panel Cutout Dimensions: 238 (W) × 132 (H) mm;

Operating Environment: Temperature: -5°C to +50°C;

Humidity: ≤ 90% RH;

Power Supply: ~220 V ± 10%, 50/60 Hz;

1Fuse: ~220 V/1 A (Built into the power socket; one serves as a spare);

Weight: Approx. 3.5 kg.
