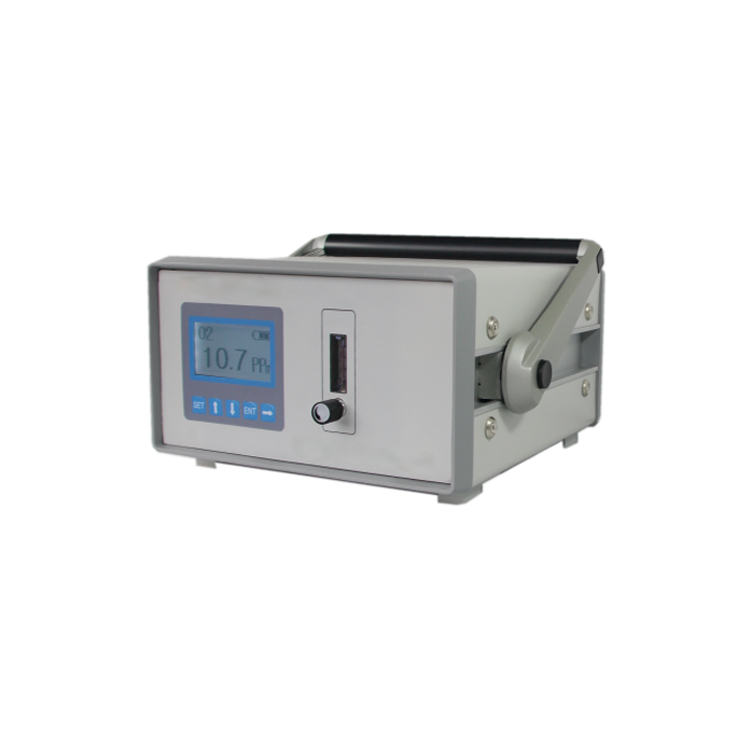

Oxygen Analyzer Analyzer

Model:MIC300-A08

Oxygen Analyzer Analyzer is a portable, intelligent industrial gas analysis device that enables rapid and precise detection of oxygen levels across diverse operating conditions, enhancing production safety and efficiency.

Model:MIC300-A08

Send Inquiry

Specifically engineered for industrial environments, the Oxygen Analyzer integrates advanced sensing technology with intelligent control algorithms, offering both portability and ease of use. It rapidly analyzes oxygen levels in diverse gas mixtures, delivering reliable monitoring data to serve as a vital tool for ensuring production safety and optimizing processes.

Detection Gas: O2

FEATURES:

Oxygen Analyzer Analyzer features a 128*64 LCD display , a built-in high-performance lithium battery, and is portable and easy to use . It is a new type of intelligent industrial gas analyzer developed using imported electrochemical and ion flow technologies combined with advanced single-chip microcomputer technology . It is widely used for rapid analysis of oxygen content in air separation nitrogen production, chemical processes, high-temperature sintering furnace protective gases, electronic industry protective gases , and in the glass, building materials, and various mixed gases industries.

Measurement range	0.01 % - 100% (measuring range can be customized)
Resolution	0.01%/0.1%
Measurement accuracy	≤±2%FS
Repeatability	≤±1%FS
Stability	≤±1%FS /7d
Response time	T 90 ≤30S
Sample gas flow rate	400±50mL/min
Sample gas pressure	0.10 MPa ≤ Inlet pressure ≤ 0.20 MPa
Sample gas temperature	0-50 ℃
Ambient temperature	-5℃ to + 50 ℃
Ambient humidity	≤90%RH
Charging power supply	100～240VAC 50/60Hz 1A
Standby time	A single charge can last for 8-12 hours
External dimensions	260mm (width) x 145mm (height) x 330mm (depth)
Instrument weight	Approximately 4 kg
Measurement principle	Electrochemical sensors
Measuring medium	Common gases include inert gases , hydrogen, carbon dioxide, carbon monoxide , and hydrocarbons (if it contains SO2, NOx,NH3, H2S, etc., it must be specified when ordering).
Instrument lifespan	More than five years (normal use)
Sensor lifespan	More than two years (normal use)
Precision air pump	for the sample gas (must be specified when ordering)

MIC300-A08 Oxygen Analyzer Analyzer is widely used for rapid analysis of oxygen content in air separation nitrogen production, chemical processes, high-temperature sintering furnace protective gases, electronic industry protective gases , and in the glass, building materials, and various mixed gases industries.
