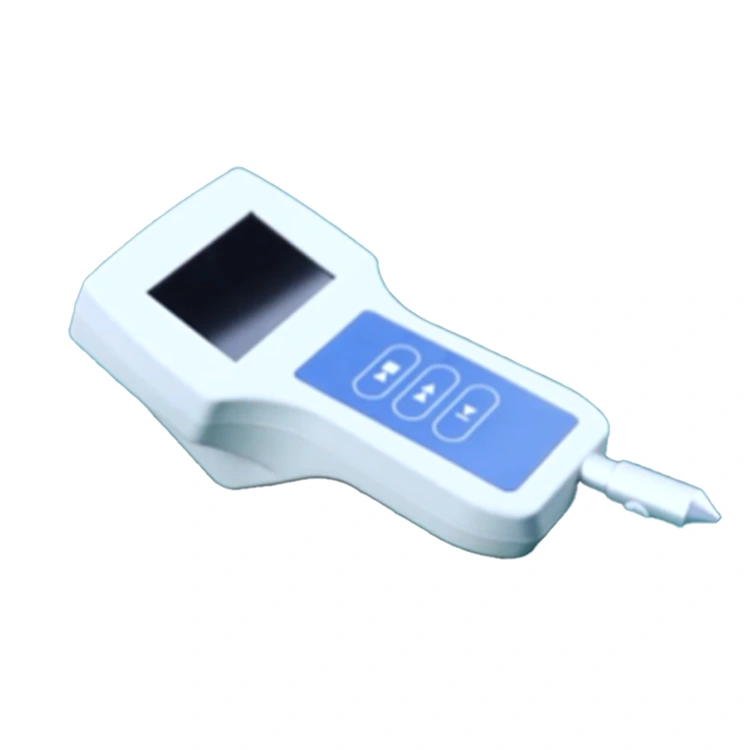

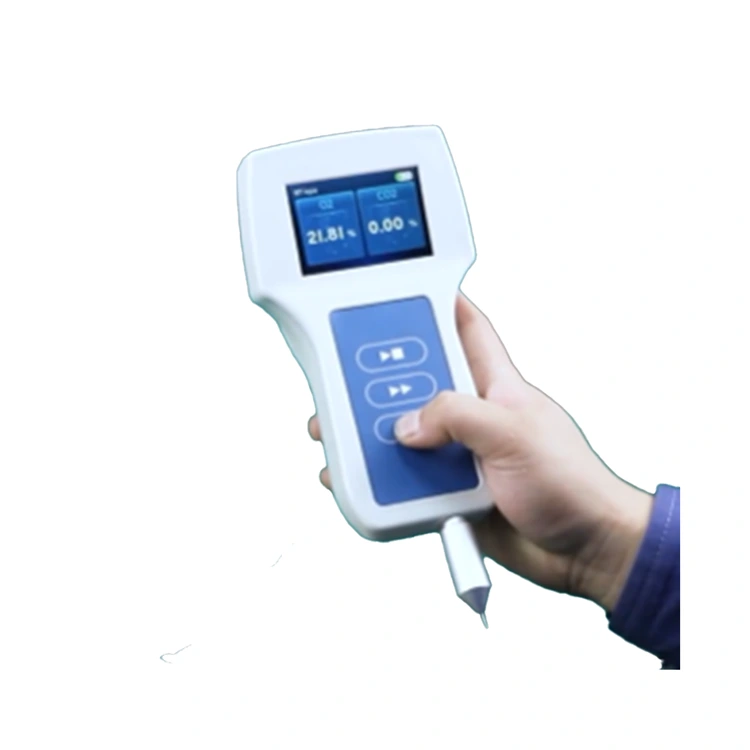

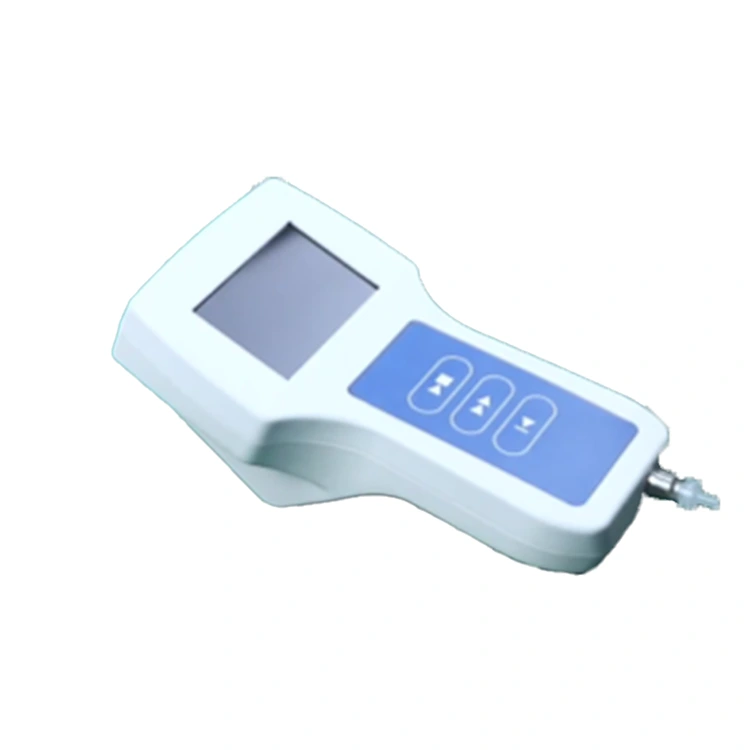

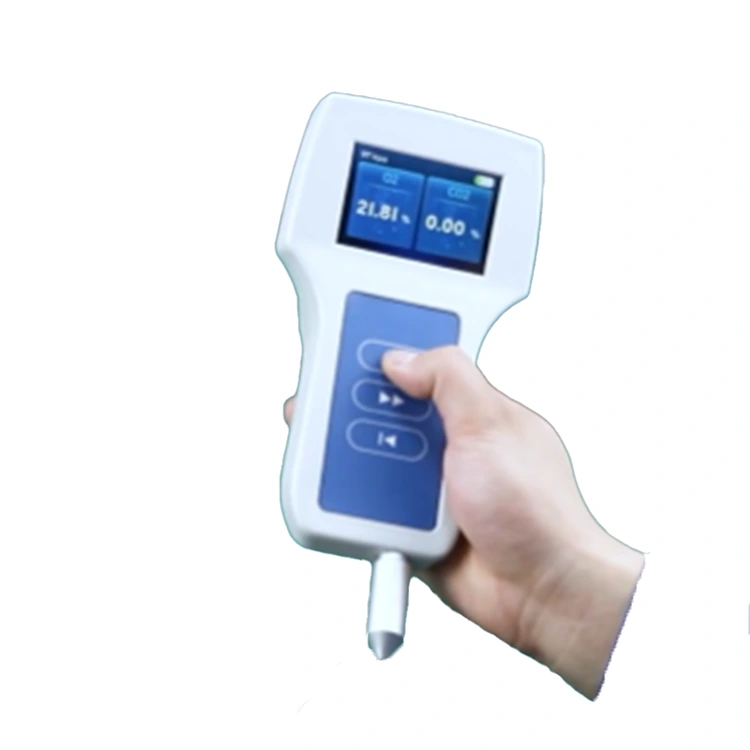

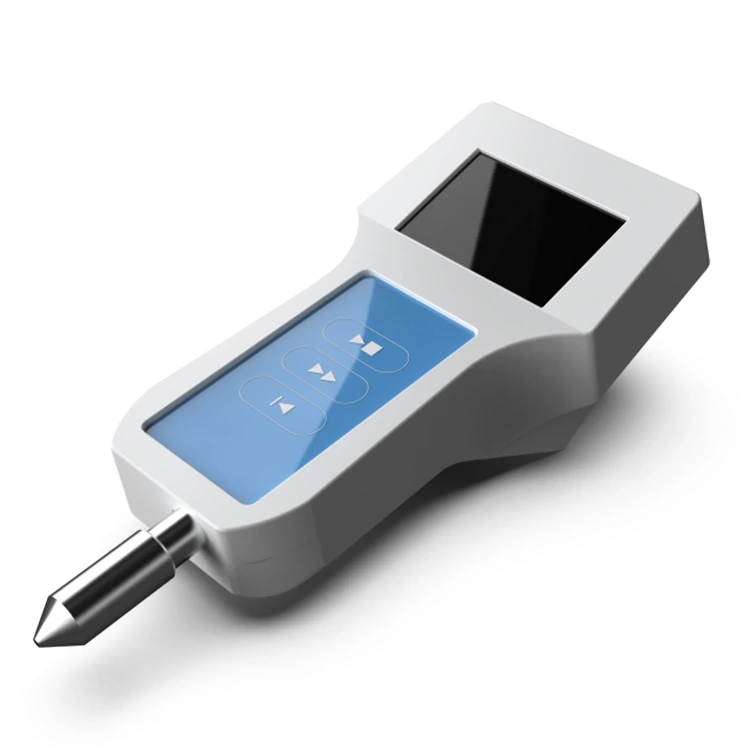

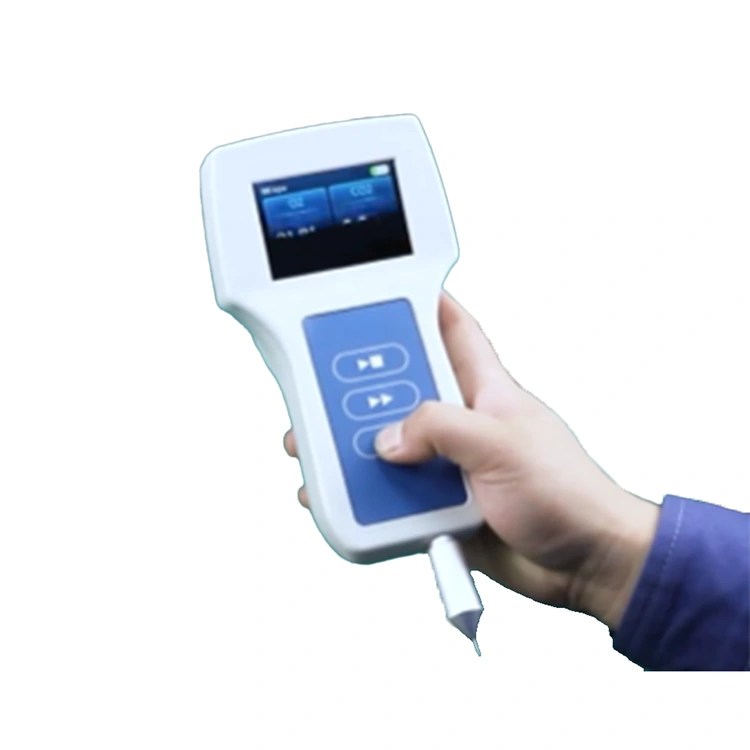

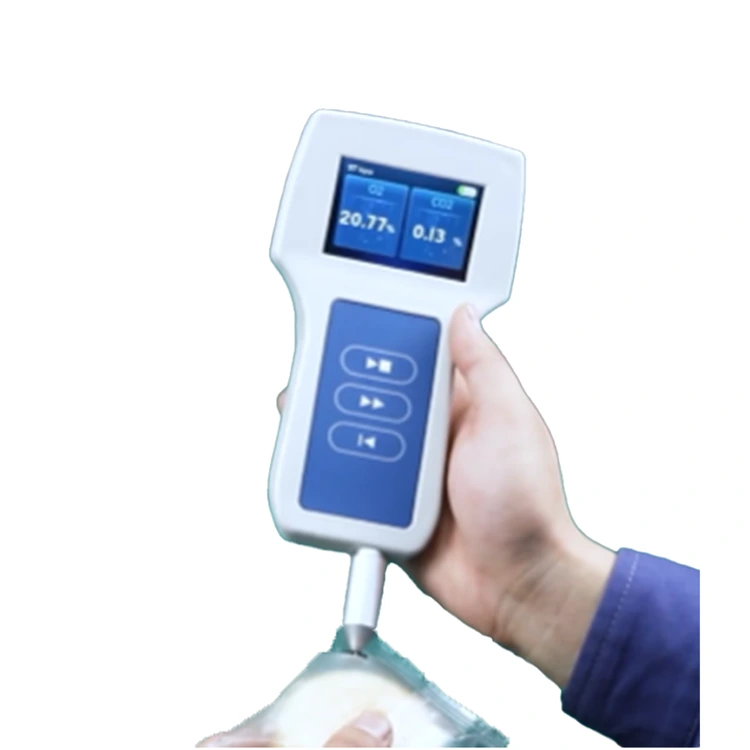

Package Headspace Gas Residual Oxygen Analyzer

The residual oxygen meter, also known as the headspace gas analyzer, was developed and produced with reference to the "JJG365-2008 Electrochemical Oxygen Determination Instrument". It is used to measure the oxygen content, carbon dioxide content, and mixing ratio in hollow packaging containers such as sealed packages, bottles, and cans. It can quickly and accurately assess the content and ratio of gas components in production lines, warehouses, laboratories, etc., thereby guiding production and ensuring the shelf life of products.

Model:MS900-O2

Send Inquiry

FEATURES:

● Handheld design, one-handed operation, lightweight and easy to carry, suitable for on-site testing in production;

● Quick-insert sampling needle protective cover to ensure test safety;

● Built-in gas sensor for accurate analysis of the gas content inside soft and hard packaging;

● Built-in pressure sensor for accurate measurement of the internal vacuum degree of the sample;

● The sensor is imported from a world-renowned brand, with ultra-high test accuracy, ultra-low failure rate and ultra-long service life;

● One-button operation and calibration, intuitive operation interface, and remote upgrade and maintenance;

● Supports one-touch switching between Chinese and English to meet different language requirements;

● Has automatic shutdown, automatic storage, and automatic memory when power off to prevent data loss;

● Built-in data storage can reach 2000 groups, and is equipped with a USB interface for data import and export;

Built-in 6800mAh large-capacity lithium battery provides portable and long-lasting power support;

SPECIFICATIONS

Measuring gas type	O2	CO2
Sensor Type	electrochemistry	Infrared absorption
Sampling volume	＜5ml	＜15ml
Sensor life	About 2 years (in air)	>15 years
Sensor range	0~30%VOL	0~100%VOL
Resolution	0.01%VOL	0.01%VOL
Measurement accuracy	≤±0.2%	0~50%, ≤±2%; 50%~100%, ≤±3%;
Response time	≤15s	≤20s
Sampling method	Built-in pump
Calibrate intake air pressure	700~1500mbar(abs.)
Calibration method	Two-point calibration
Data storage	2000 sets of loop storage
Data transmission	USB interface
Battery capacity	6800mAh
Operating temperature	0~40℃
Operating language	Support one-click switching between Chinese and English
Instrument size	18010680mm
Host weight	450g

1. Packaging bags: Suitable for testing the O2 and CO2 content in the gas of various non-negative pressure packaging bags such as coffee, cheese, milk tea, milk powder, bread,

soy powder, modified atmosphere packaging, ready-to-eat foods, and medicines; 2. Packaging containers: Suitable for testing the O2 and CO2 content in the gas of packaging containers such as canned coffee, canned milk powder, canned foods, cheese, canned foods, Tetra Pak packaging, and beverages;

3. Extended application: Suitable for testing the O2 and CO2 content in the gas on the top of ampoules
