Portable 6 in 1 Monitor

Model:MS600

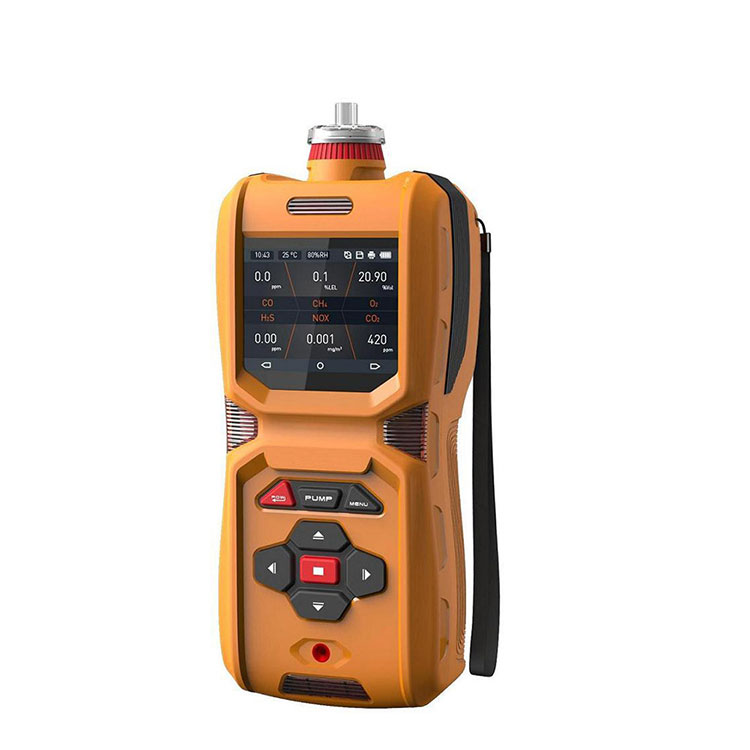

The Zetron MS600 Portable 6 in 1 Monitor measures up to 6 gases, including toxic, flammable gases and vapors, and oxygen all at once with internal pump and rechargeable battery. Innovative signaling design and handy wizard functions ensure complete safety throughout the process. We provide gas detector OEM/ODM serves.

ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
Upto 6 gases simultaneously detection
Built-in pump with 800ml/m flow rate
Sound, light and vibration alarms (95 dB at 30 cm)
Alarm types: LOW, HIGH, TWA ,STEL
USB communication and battery charging port
Optional Wifi, 4G, Lora wireless transfer
PC software for data acquisition and analysis
Rechargeable and detachable battery with UN38.3 & MSDS certification
2.5 inch colorful large digital display
Unit switch
Automatic calibration with calibration system or manual calibration
100,000 pieces data recording function
Man fell down alarm function
Anti-drop height: ≥ 8 meters
Operating Environmental: -40 to 70°C; ≤ 0 to 95% humidity
Shockproof housing
Easy-to-use buttons, even with gloves
Exia II CT4 Ga /Ex ib I Mb

Model:MS600

Send Inquiry

MS600 Portable 6 in 1 Monitor Supplier and Manufacturer

MS600 Portable Multi Gas Detector

Detection Gas: CH4

FEATURES:

ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
Upto 6 gases simultaneously detection
Built-in pump with 800ml/m flow rate
Sound, light and vibration alarms (95 dB at 30 cm)
Alarm types: LOW, HIGH, TWA ,STEL
USB communication and battery charging port
Optional Wifi, 4G, Lora wireless transfer
PC software for data acquisition and analysis
Rechargeable and detachable battery with UN38.3 & MSDS certification
2.5 inch colorful large digital display
Unit switch
Automatic calibration with calibration system or manual calibration
100,000 pieces data recording function
Man fell down alarm function
Anti-drop height: ≥ 8 meters
Operating Environmental: -40 to 70°C; ≤ 0 to 95% humidity
Shockproof housing
Easy-to-use buttons, even with gloves
Exia II CT4 Ga /Ex ib I Mb

SPECIFICATIONS

Single gas detector: CO
Detection principle: EC electrochemical sensor
Measuring range:0-20000ppm
Resolution: 1ppm
Accuracy:≤±2% (F.S)
Respond time: T90≤30S
Sensor lifetime: 2-3 years
Detection method: Pumped
Battery: 3.7V,6000mAh
Protection level: IP67
Product Size:195x77x46mm(L×W×H) or 7.6x3.0x1.8 inch
Weight: ≤500g
Protection grade: Exia II CT4 Ga /Ex ib I Mb
Anti-drop height: ≥ 8 meters
Working environment: -40℃～+70℃, ≤95%RH (non-condensing occasions)
Warranty time: 1 year

Gases to be detected	Range	Allowable	Minimum reading	Response time T90
Combustible gas ( EX )	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Methane ( CH4 )	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Oxygen gas ( O2 )	0-30%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Carbon monoxide ( CO )	0-100ppm	＜±2%(F.S)	0.1ppm	≤25 seconds
Carbon dioxide ( CO2 )	0-500ppm	＜±2%(F.S)	1ppm	≤20 seconds
Ozone ( O3 )	0-1ppm	＜±2%(F.S)	0.001ppm	≤20 seconds
Hydrogen sulfide ( H2S )	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Nitric oxide ( NO )	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
TotalVolatileOrganic	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds
Compound gases
( TVOC )
Volatile gases ( PID )	0-10ppm	＜±2%(F.S)	0.001ppm	≤30 seconds

Gases to be detected	monitor up to 6 gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.Optional configuration: temperature and humidity measurements.
Application scenarios	All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range	0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more), 0.01 mg/l (0 ~ 200 mg/l), 0.1% LEL, 0.01%LEL 0.001% Vol
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on. Depending on the type of gas, range, field environment and user demand.
Sensor service life	Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; Infrared principle: 5 ~ 10 years; Catalytic combustion: 3 years; Thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error	≤±1% F.S (other precision levels can be customized)
Linearity	≤±1%	Repeatability	≤±1%	Uncertainty	≤±1%
Response time	T90≤20 seconds			Recovery time	≤30 seconds
Working environment	Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature	-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Temperature and humidity measurement	Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply	3.6VDC, 6000mA high capacity rechargeable polymer battery
Display mode	2.5-inch high-definition color screen
Detection mode	Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min, three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode	It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface	USB (charging and communication), optional: RS232, infrared communication, automatic recognition

All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
