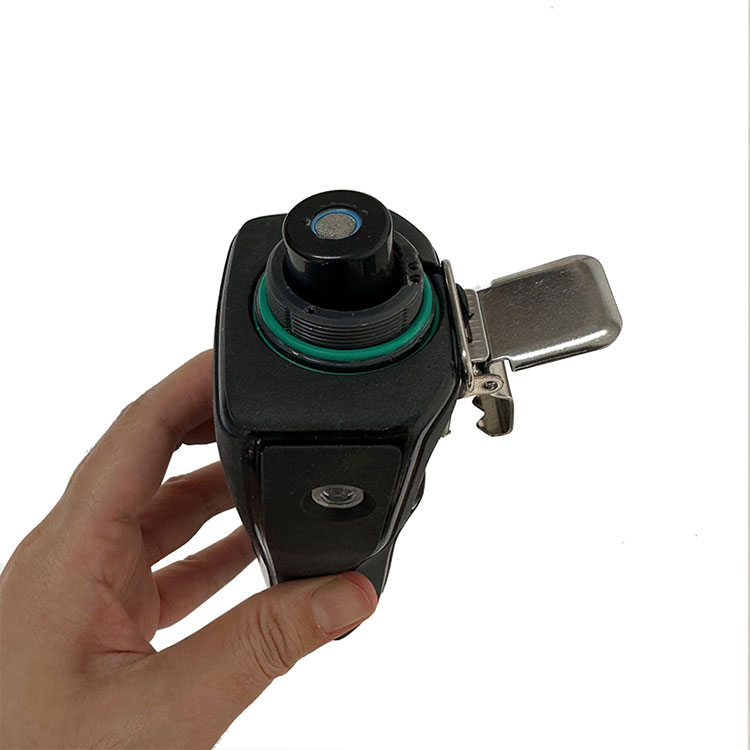

Portable Single Gas Detector

The Portable Single Gas Detector from Zetron manufacturer is a compact device designed for easy carrying and quick gas detection. It provides reliable monitoring of a single gas, offering safety in various environments. With its lightweight and portable design, it ensures convenience and peace of mind for workers in industrial settings or other areas where gas hazards may be present.

Model:Zerton MS104K-L

Send Inquiry

MS104K-L Single Gas Detector Factory Price

The main functions of MS104K-L Portable Single Gas Detector are for The main functions of the MS104K-L portable gas detector are to quickly and accurately detect gas leaks or gas concentration exceeding the alarm limit. The main detection principles of gas detection are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID photoionization, etc. The MS104K-L is widely used in firefighting, emergency rescue, confined space, petroleum, chemical industry, metallurgy, refining, gas, storage, medicine, environmental protection, air treatment and other occasions.

Portable Single Gas Detector Feature

●Built-in pump suction measurement, can be switched to diffusion, diffusion + pump suction detection mode

●Pump clogging alarm

●LED lighting (optional)

●Unit free switching, unit optional: umol/mol, ppm, pphm, ppb, mg/m3, ug/m3, %Vol, %LEL

●8-key operation, quick one-key calibration function

●Data storage, storage capacity of not less than 100,000 items

●Communication interface: TYPE-C, option: BluetoothFall alarm

●Data recovery function, part or all of the factory data recovery

●Maximum value, minimum value, weighted average value display

●Alarm mode setting

Alarm mode: sound and light alarm, vibration alarm, voice alarm

Alarm type: Concentration alarm, under pressure alarm, fault alarm, pump blockage alarm.

Alarm mode: low alarm, high alarm, interval alarm, TWA/STEL alarm

●Misoperation recognition function, concentration calibration misoperation is automatically recognized and blocked

●Zero point auto-tracking, avoiding zero point drift.

●Multi-level calibration of target point

●Intrinsically safe circuit design, explosion-proof, shock-proof, anti-static, anti-radiation.

●Protection class IP68, rain and immersion, dustproof, anticorrosive

Detection Factor	Single gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, combustible gas Ex, carbon dioxide CO2, VOC, etc.), depending on the site environment and user requirements
Detection Range	Depends on the site environment and user needs
Resolution	0.001ppm (0-10ppm high accuracy)/0.01ppm (0-10 ppm); 0.01ppm (0-100 ppm), 0.1ppm (0-1000 ppm), 1ppm (0-1000 ppm or more); 0.1%LEL; 0.1%, 0.01%Vol
Detection Principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoionization, etc., depending on the range, site environment and user needs
Sensor life	Electrochemical 2-3 years, catalytic combustion 2-3 years, infrared 5-10 years, thermal conduction 2-5 years, PID 2-3 years
Measuring method	Built-in pump suction, can be switched to diffusion, diffusion + pump suction detection mode
Display	LCD
Display content	Real-time concentration, unit, gas name, alarm status, time, storage status, communication status, power, charging status, etc.
Detection accuracy	Typical precision: ≤±3% FS (optional higher precision sensor)	Uncertainty	≤±2%
Linearity	≤±3%	Repeatability	≤±2%
Response time	T90≤20 seconds	Recovery time	≤30 seconds
Operating power supply	DC3.7 V*2
Battery capacity	2500mAh rechargeable polymer battery, with over-charge, over-discharge, over-voltage, short-circuit, overheating protection function.
Environment	Temperature: -20℃~+60℃, customizable -40℃~+70℃; Relative humidity: 10-95%RH
Communication Interface	Standard Type-C (2 hours fully charged)
Data storage	Standard capacity of not less than 100,000 items; support for local view, delete or data export, storage time interval arbitrary settings
Interface language	Chinese, English and other languages can be customized
Explosion-proof type	Intrinsically safe ExiaⅡCT4Ga
Protection class	IP68
Housing material	High-strength corrosion-resistant fire-resistant polycarbonate and rubber protective cover, drop-proof wear-resistant anti-static, effective drop resistance ≥ 5 meters
Dimension	Maximum size 167X64X62mm(L×W×H)
Weight	Approx. 280g
Standard accessories	Calibration cover, pump suction nozzle, manual, certificate of conformity, USB charger (including data cable), instrument packaging color box
Optional accessories	① 0.2 meters swan neck sampling probe;
	② activated carbon filter;
	③ 0.4 meters stainless steel sampling handle (including 1 meter hose);

All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
