PTM600-L Pump Type Laser Methane Gas Detector

PTM600-L is suitable for detecting gas leakage of buried pipelines and methane in air. It has a fast response time, high sensitivity and longer service life, and it can detect the concentration of methane. Due to the wavelength locking technology, PTM600-L laser gas detector does not need regular calibration, and can be directly installed on carpet cart and electric vehicle,which greatly improves the efficiency of leak detection.

Model:PTM600-L

Send Inquiry

Features:

TDLAS Laser principle detection, faster and more accurate leak detection

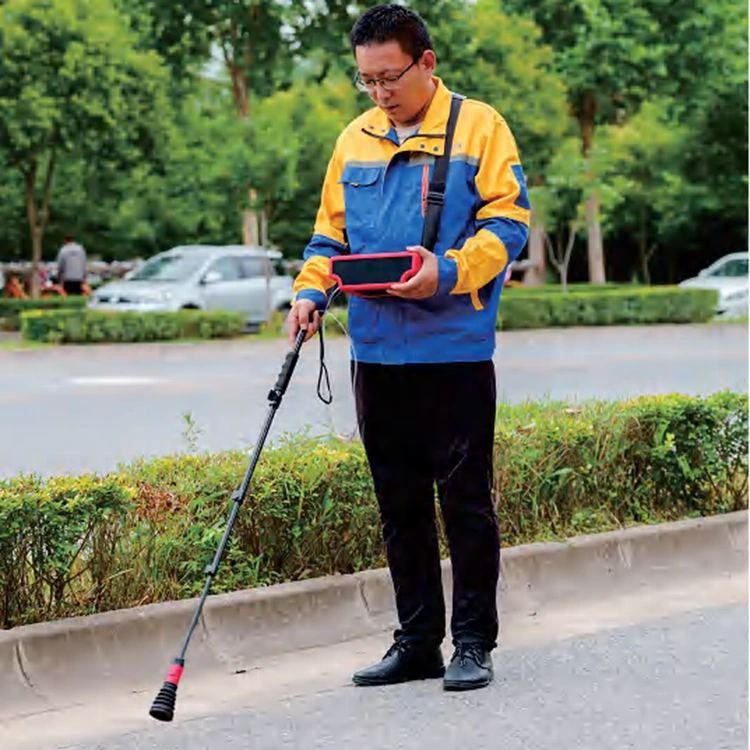

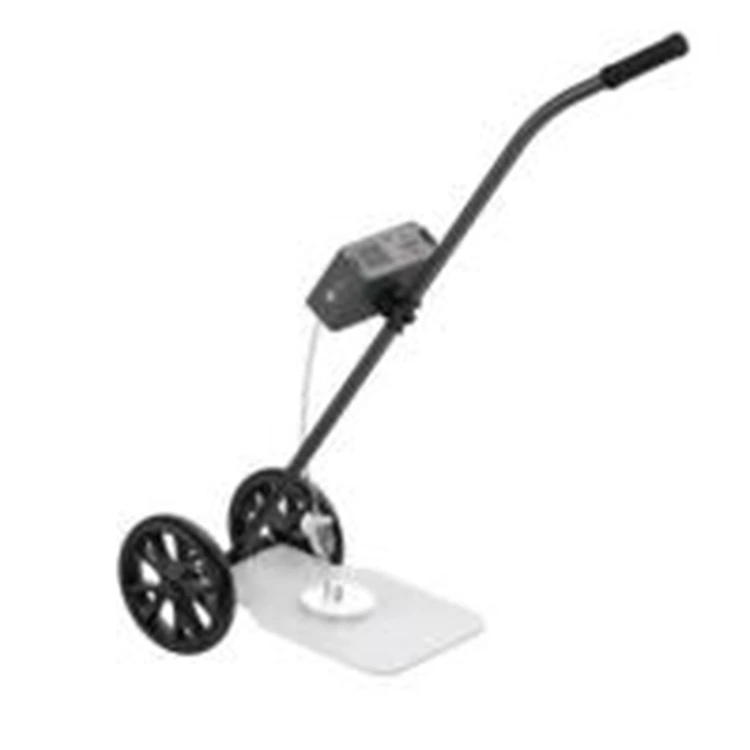

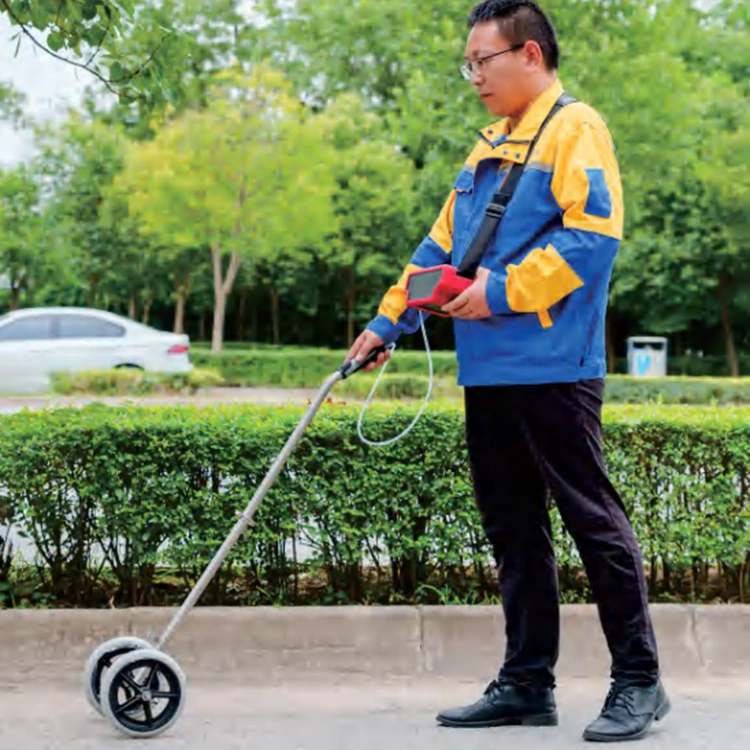

Handheld probe and carpet probe, easy to cope with more inspection environments

Optimized integrated design, more compact appearance

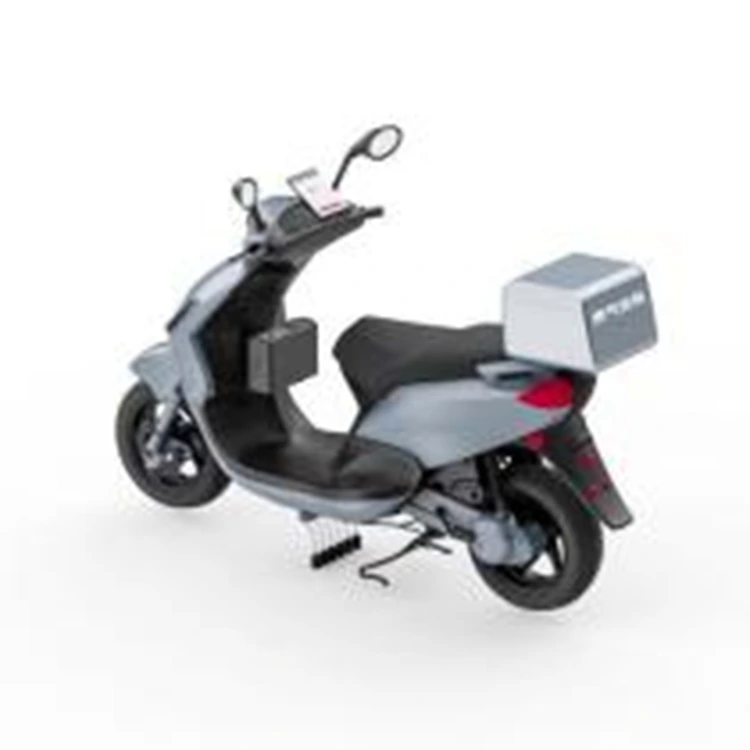

Used with gas patrol car or electric car, all-round detection of gas leakage

Equipped with high-flow gas pump to improve inspection efficiency

Gas	Methane (CH4)
Measuring Range	PPM, 0-100%LEL,0-100%VOL
Sensitivity	1ppm
Response Time	0. 1s
Display	Colorful touch screen
Alarm	Alarm at CH4 threshold, pump stops working
Beep Sound	85dB (adjustable)
Communication port	Charge port, Bluetooth
Run Time	Charging 6 hours, use for 10 h
Pump rate	1.3L/min
Ex Marking	Ex ib IIB T4 Gb
IP Rating	IP66
Strap	Synthetic strap, 30mm wide
Operating Temperature	- 20℃~ 50℃
Warranty time:	1 year

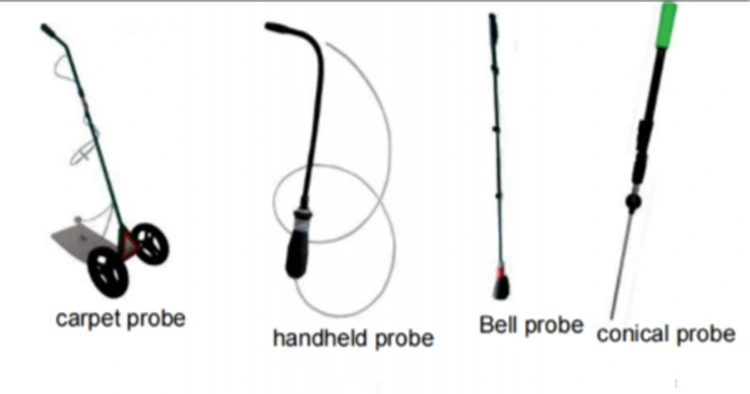

Probe Options

Municipal underground pipeline inspection, courtyard pipeline inspection, household pipeline inspection, station inspection, long-distance pipeline inspection, special occasion inspection, etc.
