SESAL

Model:SESAL

The SESA Series SESAL features 20 built-in sounds (maximum 118 dB at 1 meter) and 5 user-defined sounds (110–115 dB at 1 meter). The LED can remain lit and is combined with a flashing signal light and an electronic alarm, with a maximum volume of 118 dB. We invite you to learn more.

Model:SESAL

Send Inquiry

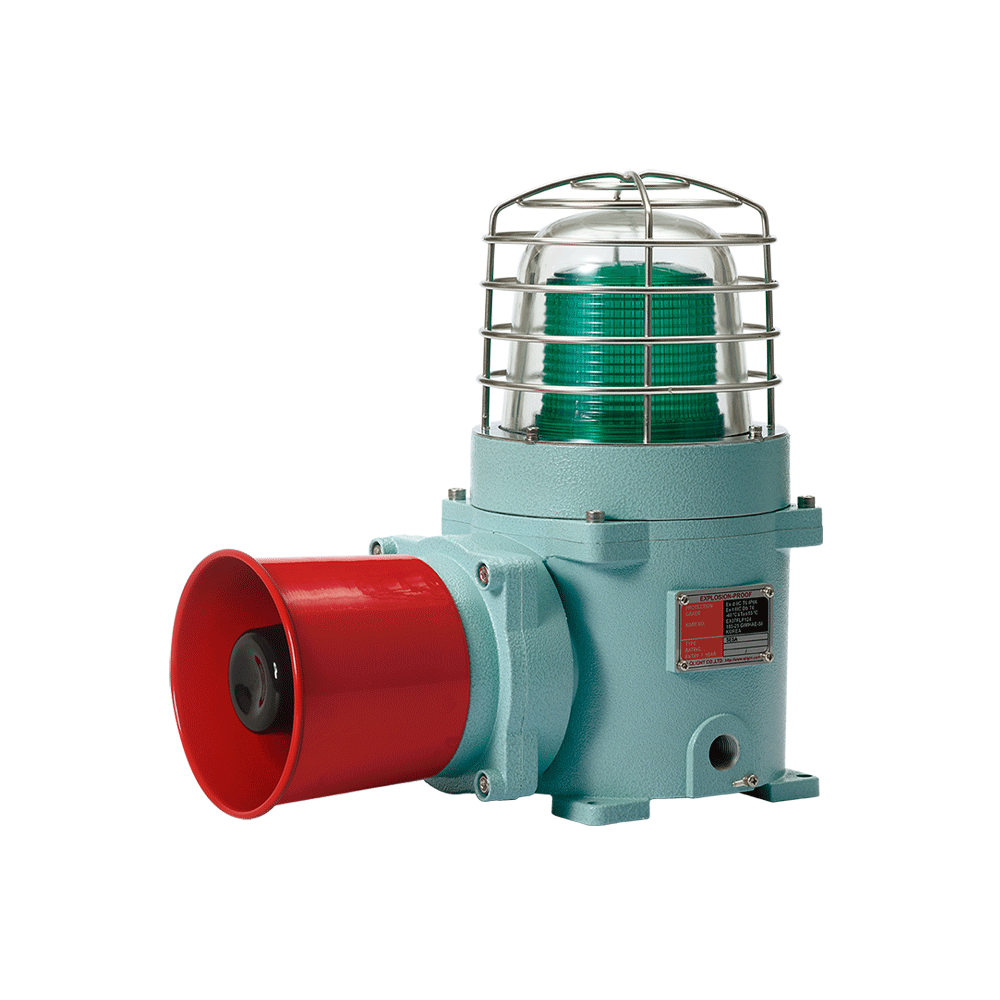

SESAL：LED Steady/ Flashing Signal Beacon & Electronic Sounder Combination Max.118dB

Product Feature

20 Built-in Sounds (Max.118dB at 1m), 5 User-Defined Voice (110~115dB at 1m)

Voltage

DC:24V│AC:120V,230V

Dimension

Cage Diameter : Ø167 │Height : 333 │Length : 327

Materials

Lens-Tempered glass │Housing-Al

Protection rating

Ex db IIC T6 Gb│IP66

Certificate

Large explosion proof signal beacon / light & electronic sounder combinations
A variety of light sources and sound selections to fit your sophisticated application needs
Aluminum housing provides excellent durability
Fully enclosed structure with protection rating of IP66
Integrated housing and terminal box model
Long product lifetime with the application of a high intensity LED light source
Suitable for locations where bulb replacement is inconvenient
Built in switch for steady/flashing selection
Flashing rate : 60-80 flashes/min
Sound volume : Max. 118dB at 1m(Volume adjustable)
Standard housing color : MUNSELL No. 7.5BG 7/2
Cable entry : 1/2″ NPT
Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector-ABS
Certificates : IECEx, ATEX, NEPSI, KCs, CCS, CCC, CCC(F), TS

Protection rating :

IECEx - Ex db IIC T6 Gb, IP66

ATEX - II2G Ex db IIC T6 Gb, IP66

KCs - Ex d IIB+H2 IP66 T6

NEPSI, CCC, CCS - Ex db IIC T6 Gb, Ex tb ⅢC T80℃ Db

TS - Ex db IIC T6 IP66 Gb

Ambient operating temperature :

-20°C ≤ Tamb ≤ +60°C(TS)

-40°C ≤ Tamb ≤ +55°C(KCs)

-40°C ≤ Tamb ≤ +60°C

Voltage AC120V: AC110V-120V, AC230V: AC220V-230V

Model number	Voltage	Current	Sound pattern and volume	Certificates	Weight	Color
SESAL	DC24V	1.40A	· WS-5 Warning sounds : Max.118dB · WP-5 Special warning sounds : Max.118dB · WM-5 Melodies : Max.118dB · WA-5 Alarms : Max.116dB · WV-5 Customizable voices : 110-115dB		8.42kg	R-Red A-Amber G-Green B-Blue
	AC120V	300mA			9.02kg	R-Red A-Amber G-Green B-Blue
	AC230V	70mA			9.02kg	R-Red A-Amber G-Green B-Blue

ᆞSemi-permanent product lifetime with the application of a high intensity LED light source, suitable for locations where bulb replacement is inconvenient

ᆞFlashing rate: 60~80/min(Built-in steady/flashing selection switch)

※ CCC(F) compliant: DC24V

Sound Tone Combination of Standard Product

Sound Category	Sound Tone	Channel	Sound
5 Warning Sounds	Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion	Ch1 Ch2 Ch3 Ch4 Ch5	Please contact us for more details.
5 Special Warning Sounds (1st Group)	Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long	Ch1 Ch2 Ch3 Ch4 Ch5
5 Melodies	Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March	Ch1 Ch2 Ch3 Ch4 Ch5
5 Alarms	Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat	Ch1 Ch2 Ch3 Ch4 Ch5
5 Customizable voices	Customized sound	Ch1 Ch2 Ch3 Ch4 Ch5
