Simple Gas Detection System

TH-1000B Simple Gas Detection System is mainly used in gas analysis industry. The main principle is to sample the measured gas on site for dehumidification and dust filtration, and keep the temperature and humidity of the measured gas constant within a certain range, so that the gas analyzer can detect the concentration normally. The whole process is automated and does not require human intervention. TH1000 gas pretreatment system is used in occasions where the measured gas has little dust, little water vapor, and normal temperature.

Send Inquiry

Product characteristics

Waterproof design, fast and stable detection.

The Simple Gas Detection System can be built into the chassis or externally.

The standard sampling distance is 10 meters, and the maximum sampling distance with the optional vacuum pump is over 70 meters.

Product configuration

TH-1000B	Preprocessing Configuration

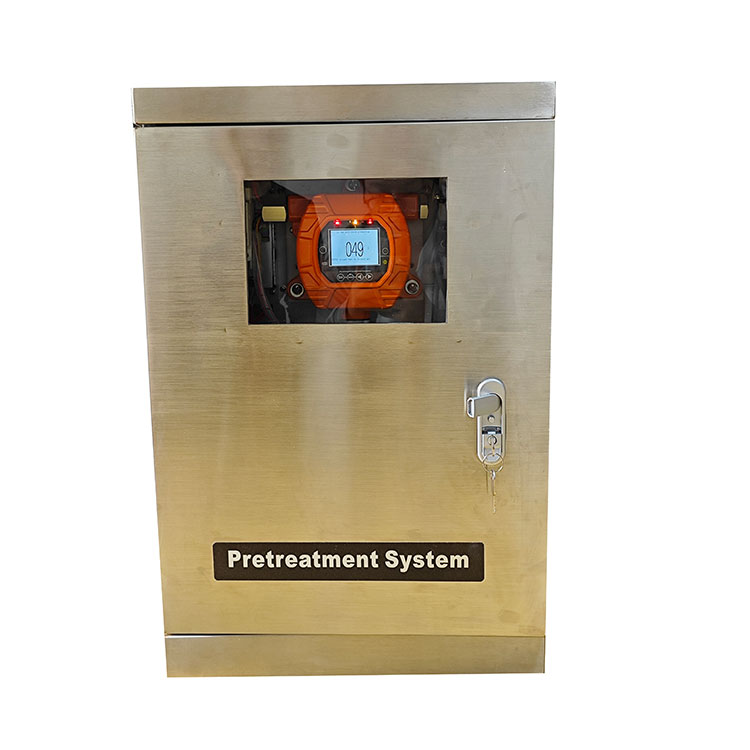

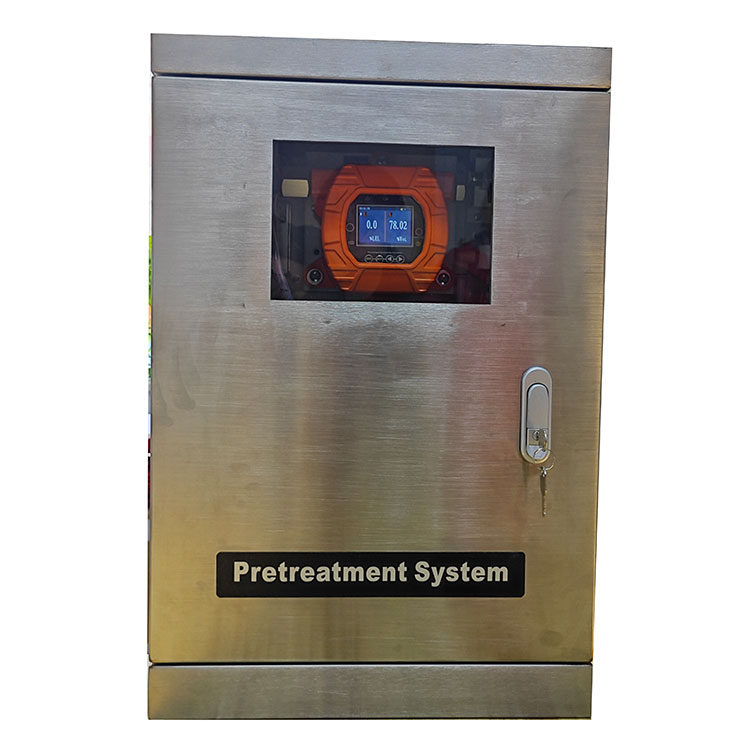

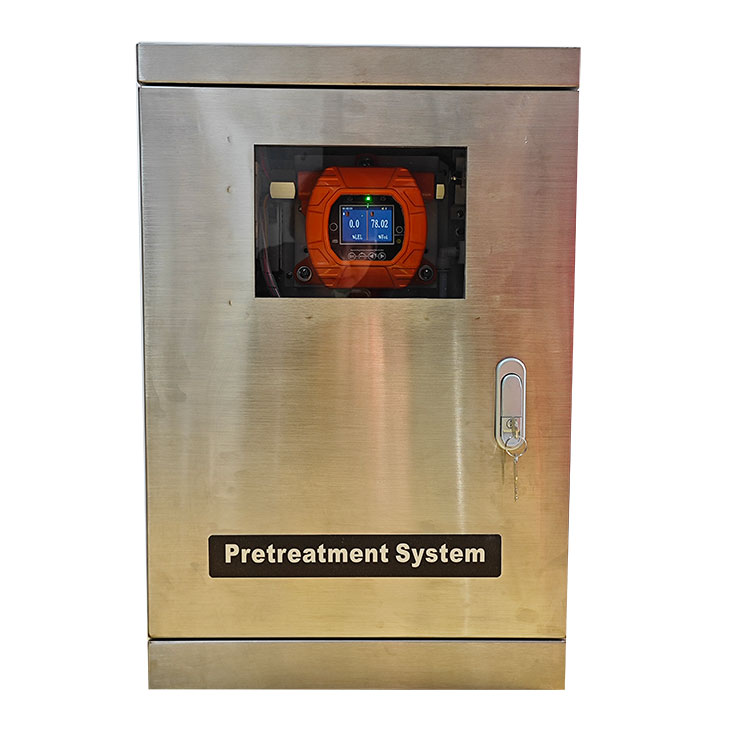

Features: With window Applicable occasions: Normal temperature A small amount of water vapor A small amount of dust	201 stainless steel chassis (with window) Non-explosion-proof chassis, customizable explosion-proof chassis

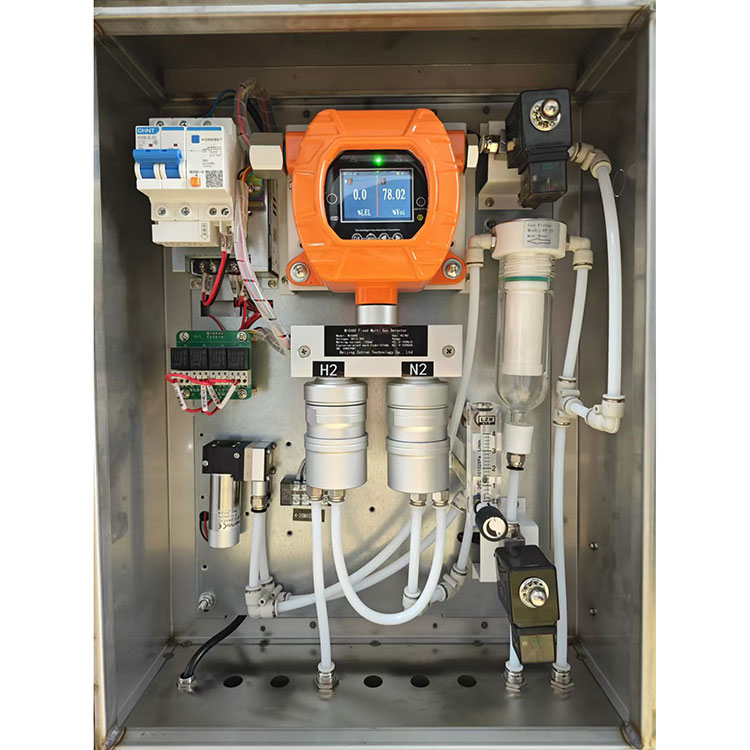

	MIC-500S gas detector
	Glass condensate filter
	Electromagnetic drain valve
	Brushless DC pump
	Relay expansion board
	Power management system
	Flow-through connector
	Connecting hose
	Dimensions (600400170mm)

Detection gas	Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc.
Detection range	0 ~ 1, 10, 100, 1000, 5000, 50000ppm (mg/m3); 0 ~ 100%LEL; 0 ~ 200mg/L; 0 ~ 20%, 50%, 100%VOL; Other ranges are optional,
Resolution	0.001ppm, 0.01ppm, 0.1ppm, 1ppm; 0.1%LEL; 0.1mg/L; 0.01%VOL, 0.001%VOL; Other resolutions can be customized,
Detection principle	Electrochemistry, catalytic combustion, infrared, thermal conductivity, PID photoion, UV absorption, laser TDLAS, etc., depending on the gas type, range, site environment and user needs.
Typical accuracy	≤±3%F.S (Higher accuracy can be customized according to sensor performance)
Linearity	Plus or minus 2% or less
Response time	T90≤30 seconds
Processed sample gas	The temperature is not high, the water vapor is not large, and the dust is not much
Processed sample gas	(When the humidity is too high and the dust is large, other pretreatment is needed)
Working mode	Constant temperature: 25℃after treatment, can be set (optional)
Working voltage	Constant humidity: 70%RH, the humidity after treatment, can be set (optional)
Working environment	Fixed continuous operation, pump type measurement (positive pressure, negative pressure, vacuum environment can be)
Sampling distance	220VAC, 50HZ
Display mode	Operating temperature -40℃~ +70℃(typical value), relative humidity≤99%RH, pressure: 0.1MPA +/-20%,
Signal output	Sampling temperature: -40℃~ +70℃(standard)
Alarm mode	The standard is 10 meters, the sampling distance of the optional high-power vacuum pump is greater than 70 meters, if the pressure of the measured gas is relatively large, the sampling distance is correspondingly larger
Protection level	1.7 inch HD color display on site,
Electrical interface	①Three (four) wire system 4 ~ 20mA, can be connected to various alarm controllers, PLC, DCS and other control systems;
Outer box material	2 Bus RS485 (RTU), standard modbus protocol;
External dimensions	③2 sets of relay high and low alarm switch output (standard 1 set, optionally add 1 set), passive contact (dry node)
Standard accessories	Optional: 0 ~ 20mA, 1 ~ 5V, 0 ~ 5V, 0 ~ 10V, wireless transmission, network transmission, SMS alarm
Manufacturer qualification certificate	The default output is 1. Two passive contact (dry node) outputs are optional. Alarm points can be set. On-site audible and visual alarm (optional)
