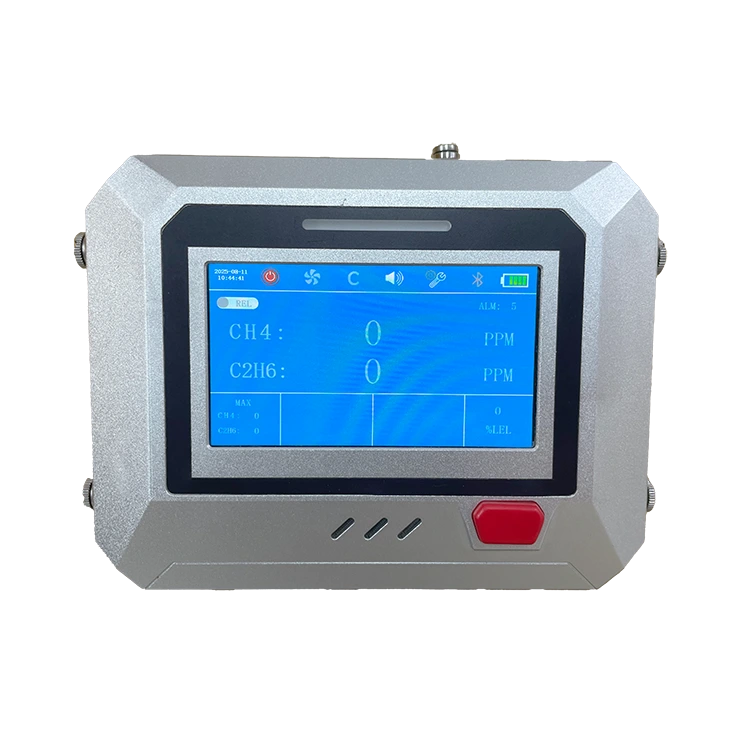

PTM600-EG Portable Laser Methane And Ethane Detector

Utilizing advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, the PTM600-EG is primarily used for natural gas pipeline leak detection. It simultaneously detects methane and ethane content, enabling differentiation between natural gas and biogas. Compared to traditional gas leak detection technologies, laser technology can quickly determine if a natural gas leak is present, offers higher detection sensitivity, and offers a longer service life, making it a high-tech product aligning with the times.

Model:PTM600-EG

Send Inquiry

Features:

Simultaneous detection of methane and ethane.

Highly specific, detecting only methane and ethane reactions.

Intrinsically safe design.

10-year lifespan.

Full range of ppm, %LEL, and %VOL for all-scenario applications.

One-touch power on and intuitive touchscreen for easy and fast operation.

Project	Describe
Measuring gas	Methane, ethane
Measurement method	Pump suction
Maximum inspiratory capacity	1.5L/min
Range	Methane: 0~100000ppm; Ethane: 0~30000ppm
Response time	0.5S
Sensitivity	1ppm
power supply	Lithium-ion battery 7.2V 6800mAh or 12VDC
Working hours	Battery life ≥10 hours, standby ≥24 hours
Operating temperature	-25℃~50℃
Operating humidity	<90RH(non-condensing)
Explosion-proof signs	Exib IIB T4 Gb
Protection level	IP66
Curb weight	≤1500g
Dimensions	Length 170mmWidth 70mmHeight 130mm

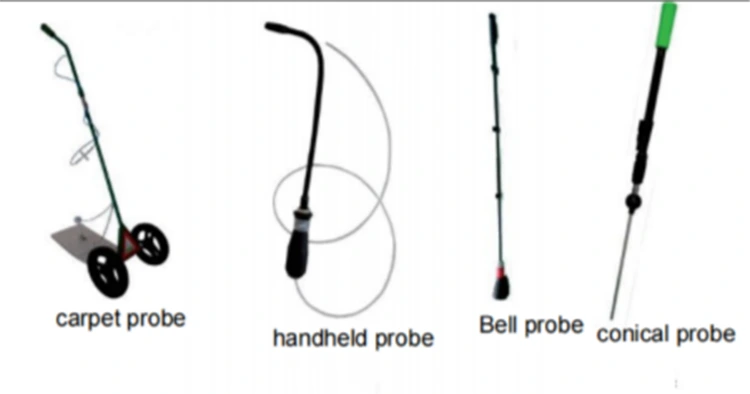

Probe Options

Municipal underground pipeline inspection, courtyard pipeline inspection, station inspection, long-distance pipeline inspection, and special occasion inspection.
